Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Jiangsu, China (Mainland) | Usage: | Welding And Turning |
|---|---|---|---|
| Color: | Blue | Vessel Diameter: | 700~6000mm |
| Wheel Speed: | 0.1-1 M/min | Type: | Conventional Welding Rotator,welding Turning Rolls |
| Condition: | New | Material: | Q235 |
| Voltage: | 110V-600V | Current: | 360A |
| High Light: | welding Turning Rolls,pipe welding rotator |
||
PU Coated Hydraulic Pipe Welding Rotator / Fit - Up Welding Rotator Adjust By Cylinders
Kindly Noted:
1. Model from 5T-150T, others model please let us know.
2. One set of welding turning rolls include one drive & one idler, also customer can choose other combinations.
3. Voltage standard is 380V , 50HZ , 3PH.We can customized other voltage
4. Control panel is wired control ,or you can choose wireless control.
5. If customers need more special requirements ,we’ll study with our engineer.
6. Color of the machine is according to the customers.
Standard Equipment:
Robust fabricated all steel frames with 4 wheels for each section (steel-core with polyurethane tyres).
Self aligned welding rotator units provide an economical and practical answer of cylindrical vessel rotating problems.
Drive with AC-motor.
Variable rotation speed.
High and constant torque.
Main cable with plug.
Remote control with cable 6m.

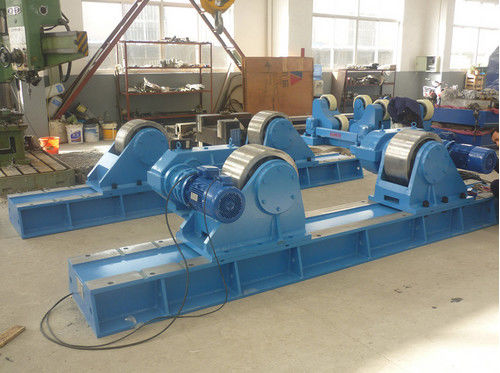

Equipment Picture:
Specifications:
|
Type |
Max |
Vessel |
Dia. and width of the wheel(mm) |
Roller |
Power of |
Adjustable |
Way |
|
|
Rubber rollers |
Metal rollers |
|||||||
|
HGK-2 |
2000 |
Φ250-1800 |
Φ200×80 |
2×Φ190×16 |
6-60 |
2×0.18 |
Manual |
AC |
|
HGK-5 |
5000 |
Φ250-2300 |
Φ250×100 |
2×Φ240×20 |
2×0.37 |
|||
|
HGK-10 |
10000 |
Φ320-2800 |
Φ300×120 |
2×Φ290×25 |
2×0.55 |
|||
|
HGK-20 |
20000 |
Φ500-3500 |
Φ350×120 |
2×Φ340×30 |
2×1.1 |
|||
|
HGK-40 |
40000 |
Φ600-4200 |
Φ400×120 |
2×Φ390×40 |
2×1.5 |
|||
|
HGK-60 |
60000 |
Φ700-5000 |
Φ450×120 |
2×Φ440×50 |
2×2.2 |
Bolt shift |
||
|
HGK-80 |
80000 |
Φ700-5500 |
Φ500×120 |
2×Φ490×60 |
2×3 |
|||
|
HGK-100 |
100000 |
Φ700-6000 |
Φ500×120 |
2×Φ490×80 |
2×4 |
|||
|
HGK-150 |
150000 |
Φ1000-6000 |
/ |
Φ620×220 |
2×4 |
|||
|
HGK-250 |
250000 |
Φ1000-7500 |
/ |
Φ660×260 |
2×5.5 |
|||
|
HGK-400 |
400000 |
Φ1000-7500 |
/ |
Φ750×320 |
2×7.5 |
|||
|
HGK-500 |
500000 |
Φ1000-8000 |
/ |
Φ750×400 |
2×11 |
|||
Description:
The welding rolls frame of HGZ series and HGK series designed and manufactured by the company absorbs domestics and overseas advantages of similar products. It is designed and manufactured according to using requirements for pressure vessel manufacturers. The product is applicable for manual welding and automatic welding of metal cylinder. It is featured with advanced technology, reliable quality, easy operation and other advantages.Two groups of roller unit with turn a certain angle are installed on base of drive and idler rotator, two groups of roller unit can turn a certain angle by revolve its mandril, so it can automatic adjusted according to specification of work piece, ensure stable and continuous running of work piece.
