Product Details:
Payment & Shipping Terms:
|
Product Name: | Cutting Machine | Type: | Cnc Machine |
---|---|---|---|
Automation: | Automatic | Control System: | CNC |
Application: | Indoor | Workpieces Material: | Steel |
Extra Service: | Custom-designed | Warranty Period: | One Year |
High Light: | Plasma Cutting Equipment,Plasma Cutter Cnc Machine |

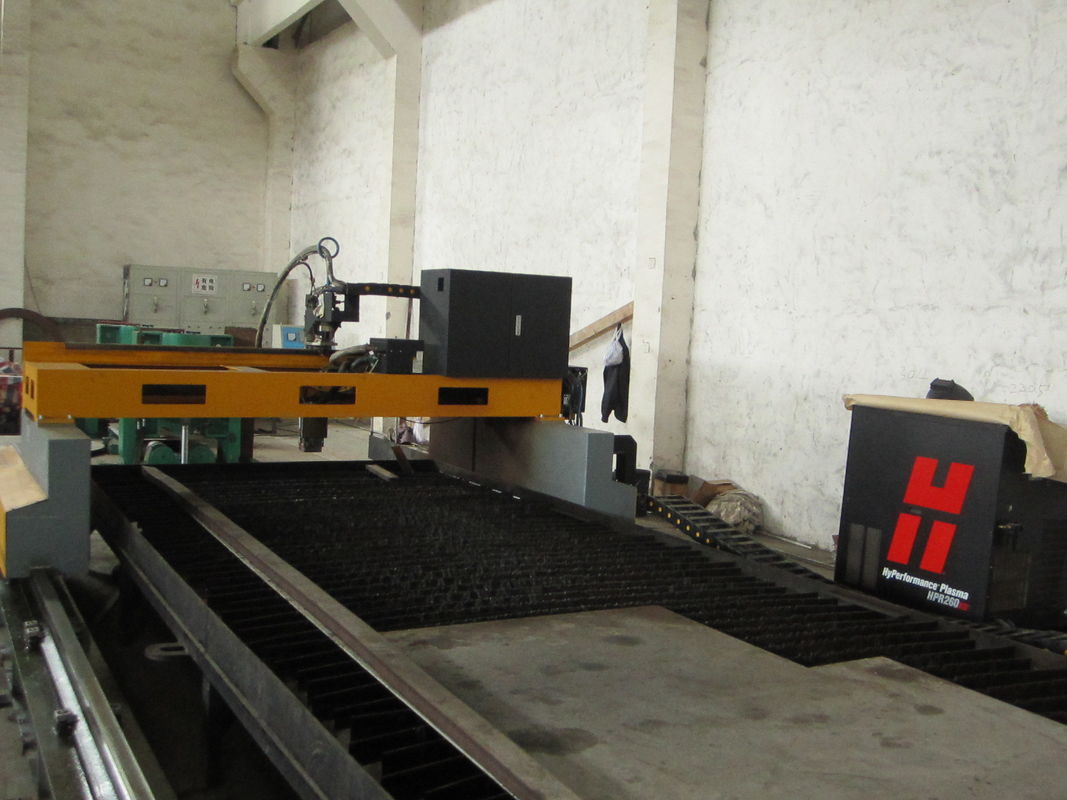

CNC Plasma/Flame Metal Pipe Cutting Machine
Specification
Description |
Specification |
Pipe diameter |
Φ60-Φ600mm |
Torch Rail length (Pipe length) |
≤6000mm |
Cutting method |
Flame /Plasma |
Flame cutting thickness |
6-50mm |
Plasma cutting thickness |
1- 20mm(Piercing 20mm); 0.1 sec response speed |
Photoelectric Height Sensor |
|
Plasma source model |
Hypertherm Power max105 |
Control System |
5 axis CNC controller with manufacturer pipe profile cutting program software |
Data input |
Torch Screen Data Input |
Max Loading capacity |
5000KG |
Pipe Chuck |
3 Jaws concentric chuck(manual lock) |
Flame Max beveling angle |
±60° |
Plasma Max beveling angle |
±45° |
Flame cutting speed |
50mm/min -800mm/min |
Plasma cutting speed |
100mm/min-4000mm/min |
Moving Error |
≤0.2mm /1000mm |
Turning Angle Error |
≤1° per 180° |
Pipe Rotate speed |
0-10000mm/min |
Description
Best Selling Products CNC Pipe Cutting Machine is special CNC equipment which is used for cutting metal pipe automatically.
It can realize auto program and auto CNC nesting work for any complicated joint type of inter tube,pipe,etc,and can cut any type welding bevel at one time.This product is widely used steel structure,shipbuilding,bridge and heavy machine industries Suitable for cutting cylinder branch,two or three-layer saddle cutting of the main pipe.It is suitable for cutting cylinder branch,two or three-layer saddle cutting of the main pipe.It is suitable for the large quantities of professional intersection pipe cutting.Cutting material:low carbon steel,stainless steel and non-ferrous metal,etc.Machine can be designed according to the client’s requirements.
