Steel Welding Shipbuilding Gantry New Bulk carrier Marine Crane

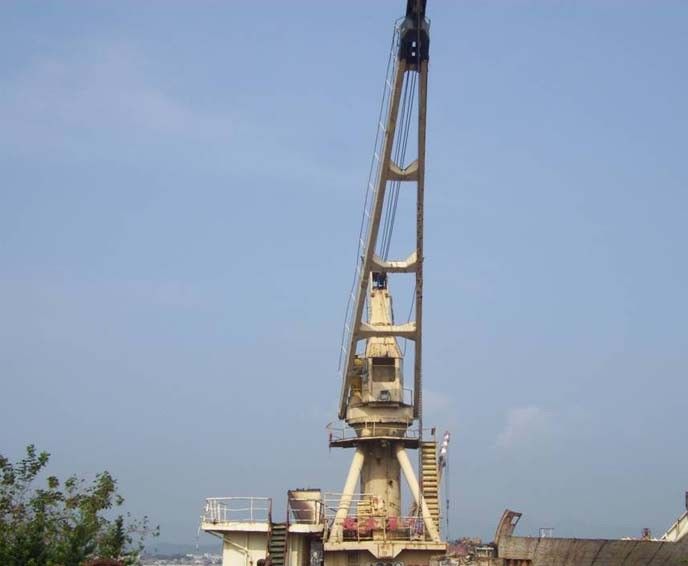

Large Image : Steel Welding Shipbuilding Gantry New Bulk carrier Marine Crane

Product Details:

Place of Origin:	Shanghai China
Brand Name:	Zhiyou
Certification:	BV ISO TUV
Model Number:	P-002

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	Nude packing or according to customer's request
Delivery Time:	Within 20 to 30 days, According to customers's order
Supply Ability:	10000tons/month

Contact Now

Detailed Product Description

Outer Diameter:	6 - 710 Mm	Surface Treatment:	Galvanized
Type:	Seamless Pipe And Weld	Material:	Steel Construction With Technical Welding
Length:	As Customer's Requirement	Test:	Squash, Extended, Water Pressure, Crystal
Application:	Gas Pipe,handrail, Railing, Staircase, Bench,furniture,etc	OEM Or ODM Service:	Available
Third Party Inspection:	Or Other Available Inspection	Category:	Marine Outfitting Equipment
Key Words:	Crane/shipyard/general Cargo Crane/bulk Carrier
Highlight:	marine steel plate

Steel Welding Shipbuilding Gantry New Bulk carrier Marine Crane

Product Overview

Steel Welding Shipbuilding Gantry New Bulk carrier Marine Crane - a comprehensive solution for shipyard and marine applications with versatile functionality and robust construction.

Available Crane Types

Shipyard Gantry Crane
Shipyard Pedestal Crane
Rail-mounted Shipyard Crane
Box-type Boom Offshore Crane
Lattice-type Boom Offshore Crane
Hydraulic Knuckle Boom Crane
Knuckle/Telescopic Boom Crane
Telescopic Boom Crane
Yacht Crane
Hydraulic Pipe Handling Crane
General Cargo Crane

Key Features

Multiple functions including single hanging, hoisting, turnover in the air, and slight horizontal turnover
Available in single girder and double girder models with optimized variable section design
Upper crab features two main hooks fixed outside the girder with stronger hook design
Lower crab trolley with main and secondary hooks fixed at girder center
Independent operation capability for both upper and lower crab trolleys
Frequency-controlled operating mechanisms for precise speed and efficiency
Jib crane installation for maintenance of upper and lower crabs
Optional wire rope electric hoist for maintenance work
Comprehensive anti-wind protection with rail clamps and ground anchors

Technical Specifications

Parameter	Unit	FC5	FC8	FC10	FC16	FC20	FC35
Rated capacity	t	5	8	10	16	20	35
Working Radius	m	6.5-16	6.5-16	6.5-16	6-14	6-14	7.5-19
Lifting height (above deck)	m	10	10	10	8	8	12
Lifting height (below deck)	m	6	6	6	6	6	6
Lifting speed (hook)	m/min	22	22	22	15	12	7
Lifting speed (grab bucket)	m/min	50	50	50	40	35	30
Derricking Speed	m/min	20	20	20	18	16	16
Rotational speed	m/min	1.7	1.7	1.7	1.5	1.4	0.8
Installed capacity (hook)	kw	48	63	82	97	105	130
Installed capacity (grab bucket)	kw	63	85	104	119	135	160

Detailed Specifications

Product name	Marine Crane
Load capacity	0-80 tons
Lifting height	0-35m
Slewing speed	0-1.0r/s
Lifting speed	0-10m/min (stepless speed)
Max/Min working radius	As per your requirements
Slewing degree	>360°
Max inclination	(Heeling) 5°/ (trim) 2°
Power supply	As per your requirements
Design temperature	-10°C < T < +45°C
Wind speed	Max (working): 20m/s Max (no-working): 50m/s
Control	Manual platform or cabin or remote controller
Certificate	CCS
Delivery time	Within 20 to 30 days, according to customer's order

Performance Features

Smooth operation with variable speed rates
360-degree rotation capability
Electro-hydraulic and manual control options
Convenient operation with safety and reliability

Applications

Suitable for ports, wharfs, freight yards, and explosion-proof environments. Ideal for ship installation and capable of handling dangerous cargoes. Can function as a hose crane for product oil operations in chemical docks or as a marine crane when installed on ships. Perfect for locations with moderate loading and unloading operations. Available with lifting hooks and grab buckets as per customer requirements.

Customization Available: All products can be customized according to your specific requirements.

Additional Marine Products

Aluminum alloy rectangular window (Fixed type)
Aluminum alloy side scuttle (Opening type)
Welted-in brass rectangular window (Opening type)
Bolted-in aluminum alloy rectangular window (Opening type)
Welted-in fire side scuttle
Welted-in rectangular fire window
Bolted-in fire side scuttle
Bolted-in rectangle fire window

Marine Window Types

OTB: Out-upward opened type
ITB: In-upward opened type
NOB: Fixed type
OLB: Outward left opened
ORB: Outward right opened
ILB: Inward left opened
IRB: Inward right opened

Packaging & Delivery

Package	Bundle packing with beveled/plain/varnished ends as required. Custom marking, painting varnish coating, and plastic end caps.
Delivery time	Within 20 to 30 days, according to customer's order
Shipment	20'GP, 40'GP, 40'HQ, 40'OT or in bulk

Our Service Commitment

Punctual Delivery: Tight production scheduling with regular updates and immediate shipping notifications
After-Sales Support: Quick feedback response, installation guidance, and global service availability
Professional Sales Team: 24-hour online support, competitive offers, and tender cooperation with complete documentation

Quality Assurance

Product Range: Comprehensive marine equipment and technical solutions
Product Design: Strong engineering team supporting design, manufacture, and installation
Production Process: Majority of products finished in our manufacturing bases for quality control
Product Inspection: Factory inspection and certification support available
