Product Details:
|
| High Light: | plastic welding equipment,welding turning table |
||
|---|---|---|---|

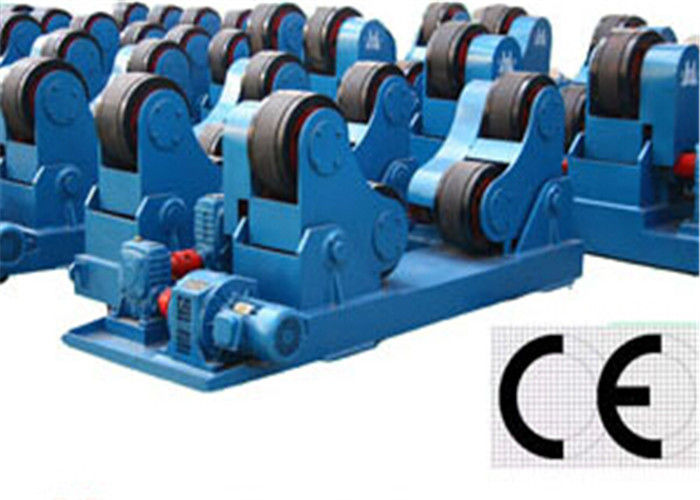

self - aligning pipe welding rotator conventional with double head turning rolls
Application:
Apply for rolls welding,spray painting ,line with rubber,etc
Specifications:
| Type | HSG/Z-5 | HSG/Z-10 | HSG/Z-20 | HSG/K-2 | HSG/K-5 | HSG/K-10 | HSG/K-20 |
| Load(t) | 5 | 10 | 20 | 2 | 5 | 10 | 20 |
| Min.mm | 250 | 320 | 500 | 150 | 250 | 300 | 500 |
| Max.mm | 2300 | 2800 | 3500 | 2000 | 2300 | 2800 | 3500 |
| Roll speed m/h | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 |
| Generator power(KW) | 0.75 | 1.1 | 1.5 | 2×0.18 | 2×0.37 | 2×0.55 | 2×1.1 |
Competitive Advantage:
1. Adopt inverter governor,double-turbo gear box and heavy load turning rolls that made by special ingredient,realize stepless timing,low drive noise and ensure stable operation&min recoil.
2. HSG/Z rolls is self adjusted by the size of the rolls body
3. HSG/K rolls can be not only classified bolt-adjusted but also manual or electrical lead screw adjusted.
