| Applications: | Turning And Tilting | Control: | VFD |
|---|---|---|---|
| Product Name: | Welding Positioners | Type: | Fixed Welding Positioner |
| Material: | Q235 | Rated Load Cap: | 50 Tons |
| Color: | Grey With Yellow | Max Gravity Height: | 500mm |
| High Light: | welding turning table,welding positioner turntable |
||
5T Rotary Pipe Positioner With 2000mm Welding Table VFD Control Rotation Speed
Kindly Noted:
1. You can choose Fixed type or Elevating type .
2. Welding Positioner can tilting from 0° to 120°, rotation 360° via VFD control.
3. Standard Voltage is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4. Controlled is remote-control box, optional is foot switch
5. If customer need more special requirements ,we could study with our engineer.
Description:
Welding Positioner is a kind of our advanced welding positioner equipment, which is be researched and
manufactured absorbing domestic and international advanced positioner equipment.The worktable is
tilting by motor, accurate and reliable positioning; it makes the work piece in perfect position for welding.
The worktable adopts AC frequency conversion speed, so large range of variable speed and high
precision. The machine can assort all kinds of auto welding or manual welding, improving welding
quality, lessening welding labor and improve productivity.
Applications:
Welding Positioner can be used at automatic welding or manual welding, such as pipe horizontal welding, tube end welding, axle, tray and barrel, it can be wildly used in the pressure vessels equipment, metallurgy, electric power, chemical machine etc industry.

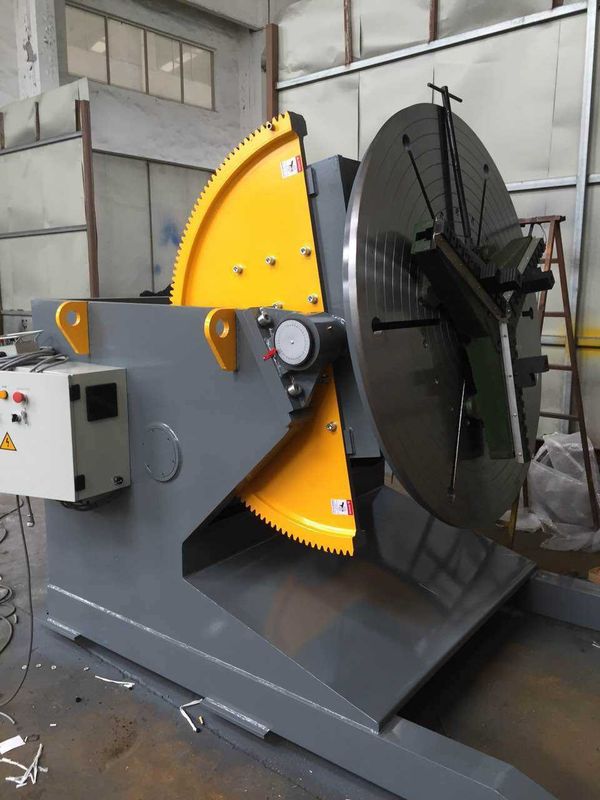

Product showing:
Technical Parameters:
Model | Rated load Cap tons | Power kw | Max Gravity height mm | Max centroid Eccentri-city mm | Table | Max Rotati-on Ф@ 90degr-ee | Tilt Angle (degr-ee) | Dimensions | Weight tons | |||
Rota-tion | Tilt | Speed(rpm) | Diame-ter ФD | L×W×H(mm) | ||||||||
Rotation | Tilt (constant) | |||||||||||
BH0.1 | 0.1 | 0.06 | man. | 150 | 100 | 0.40~4.0 | man. | 400 | 600 | 0~90 | 560×400×420 | 0.2 |
BH0.3 | 0.3 | 0.37 | man. | 200 | 150 | 0.10~1.0 | man. | 300 | 800 | 0~90 | 930×660×720 | 0.3 |
BH0.6 | 0.6 | 0.75 | 0.75 | 200 | 150 | 0.10~1.0 | 1.1 | 1000 | 1500 | 0~90 | 1200×900×850 | 0.7 |
BH1 | 1 | 1.1 | 1.5 | 250 | 200 | 0.05~05 | 0.67 | 1200 | 2000 | 0~120 | 1400×1200× | 1 |
BH5 | 5 | 2.2 | 3 | 300 | 200 | 0.05~05 | 0.14 | 1500 | 2500 | 0~120 | 2200×1500× | 3.7 |
BH8 | 8 | 2.2 | 4 | 400 | 200 | 0.02~0.2 | 0.14 | 2000 | 3200 | 0~120 | 2700×2000× | 4.5 |
BH10 | 10 | 3 | 5.5 | 400 | 200 | 0.02~0.2 | 0.14 | 2000 | 3200 | 0~120 | 2700×2000× | 5.8 |
BH15 | 15 | 3 | 5.5 | 450 | 200 | 0.015~0.15 | 0.1 | 2200 | 3200 | 0~120 | 3300×2230× | 8 |
BH20 | 20 | 4 | 7.5 | 450 | 200 | 0.015~0.15 | 0.1 | 2300 | 3200 | 0~120 | 3300×2230× | 11 |
Brand using:
1. Inverter is made in USA Danfoss / Taiwan Delta /Japan Yaskawa
2. Motor Brand is UK Invertek /Taiwan Qinwei / Siemens
3. Element is made by Schneider /Siemens/Fuji
4. Reducer is made by Kaibo/Guomao
5. Bearing is made by NTN / Harbin
Optional:
1. Wireless Controller
2. Fixture
3. Foot panel
4. Chuck
