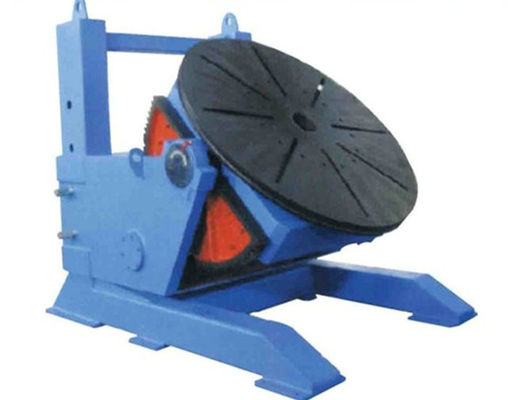

2000kg Manual Welding Turning Table With Chuck , Adjustable Weld Positioner

2000kg Manual Welding Turning Table With Chuck , Adjustable Weld Positioner
2000kg Manual Welding Turning Table With Chuck , Adjustable Weld Positioner

Large Image :  2000kg Manual Welding Turning Table With Chuck , Adjustable Weld Positioner

Product Details:
Place of Origin: China
Brand Name: Sunny
Certification: Certification of original
Model Number: EBH-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Electric control box with wooden package,Mainframe with Plastic paper package
Delivery Time: 30 work days
Payment Terms: 1-30% T/T down payment,70% T/T before delivery 2-30% T/T down payment,70% LC at sight
Supply Ability: 20 sets per month
Detailed Product Description
Applications: Automatic Welding|Manual Welding Can Tilting: 0 To 120°
Control: VFD Product Name: Welding Positioner
Rated Load: 2000kg Rotating: 360°
Type: Fixed|Elevating Voltage Standard: 380V|50HZ|3PH
High Light:

welding turning table

,

pipe welding positioners

2000kg Manual Welding Turning Table With Chuck , Adjustable Weld Positioner





Kindly Noted:



1.You can choose Fixed type or Elevating type .

2.Welding Positioner can tilting from 0° to 120°, rotation 360° via VFD control.

3. Standard Voltage is 380V , 50HZ , 3PH. Other voltage please kindly let us know.

4. Controlled is remote-control box, optional is foot switch

5. If customer need more special requirements ,we could study with our engineer.





Description:



Welding positioner is mainly used to placed the workpiece in the best position for welding and assembling with the work bench elevating,turning ,tilting ,its series includes tilting ,head and tail stocks ,elevating ,and double turning positioner ,cradle type.The positioner can be supplied for interfacing with robot or welding manipulators,to realize the welding automation.At the same time we can design and customize various type of special positioner according to the technological requirement and different work piece given by the customer.





Applications:



Welding Positioner can be used at automatic welding or manual welding, such as pipe horizontal welding, tube end welding, axle, tray and barrel, it can be wildly used in the pressure vessels equipment, metallurgy, electric power,  chemical machine etc industry.





Specifications:



Model

Rated load Cap  tons

Power kw

Max Gravity height  mm

Max centroid Eccentricity  mm

Table

Max Rotation Ф@ 90degree

Tilt Angle (degree)

Dimensions

Weight tons

Rotation

Tilt

Speed(rpm)

Diameter ФD

L×W×H(mm)

Rotation
(variable)

Tilt (constant)

BH0.1

0.1

0.06

man.

150

100

0.40~4.0

man.

400

600

0~90

560×400×420

0.2

BH0.3

0.3

0.37

man.

200

150

0.10~1.0

man.

300

800

0~90

930×660×720

0.3

BH0.6

0.6

0.75

0.75

200

150

0.10~1.0

1.1

1000

1500

0~90

1200×900×850

0.7

BH1

1

1.1

1.5

250

200

0.05~05

0.67

1200

2000

0~120

1400×1200×

1200

1

BH5

5

2.2

3

300

200

0.05~05

0.14

1500

2500

0~120

2200×1500×

1450

3.7

BH8

8

2.2

4

400

200

0.02~0.2

0.14

2000

3200

0~120

2700×2000×

1850

4.5

BH10

10

3

5.5

400

200

0.02~0.2

0.14

2000

3200

0~120

2700×2000×

1850

5.8

BH15

15

3

5.5

450

200

0.015~0.15

0.1

2200

3200

0~120

3300×2230×

2000

8

BH20

20

4

7.5

450

200

0.015~0.15

0.1

2300

3200

0~120

3300×2230×

2000

11





Competitive Advantage:



  1. Electric control system composed of electric cabinet and manual control panel making it easy to operate.
  2. Equipped with slewing bearing which helps increase the loading capacity and makes the rotation smooth.
  3. Worktable is manufactured with six M30T bolt grooves used to clamp and position the work pieces.
  4. Several concentric grooves are processed onto the surface of the worktable to help position the work piece at the center.





Brand using:



﹡Inverter is made in USA Danfoss / Taiwan Delta /Japan Yaskawa

﹡Motor Brand is UK Invertek /Taiwan Qinwei / Siemens

﹡Element is made by Schneider /Siemens/Fuji

﹡Reducer is made by Kaibo/Guomao

﹡Bearing is made by NTN / Harbin





Optional:



1. Foot switch

2. Chuck





Installation and commissioning:



If customer need installation and commissioning,we’ll send 3 workers to customer’s factory ,including one machinery worker,one electrician and one translator.But customer should pay the cost of installation and commissioning.
