Loading 20 Tons Two Columns Welding Positioner Big Distance Between Two Fixed Columns

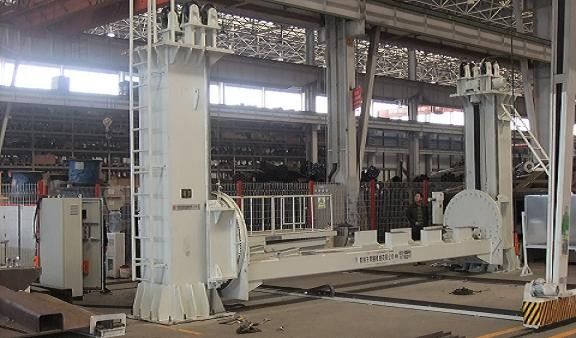

Large Image : Loading 20 Tons Two Columns Welding Positioner Big Distance Between Two Fixed Columns

Product Details:

Place of Origin:	China
Brand Name:	T M &B
Certification:	ISO/CE
Model Number:	DWP520

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Bubble papers
Delivery Time:	35 daya
Payment Terms:	T/T
Supply Ability:	10 Sets/month

Contact Now

Detailed Product Description

Max Loading:	20 Tons	Rolling Speed:	0.5-0.05 Rpm
Rolling Motor:	5.5 Kw	Tilting Speed:	0.8 Rpm
Tilting Motor:	7.5 Kw	Lifting:	Synchronous Lifting
Lifting Motor:	7.5 Kw X2	Lifting Speed:	300 Mm/min
High Light:	automatic welding positioner , Pipe Welding Positioner

20 Tons Two Columns Positioner with Big Distance between two fixed columns

China nuclear power industry 359 factory want to buy a special welding positioner for ther productions. We designed and produced for them .Two columns distance may reach to 8000 mm, the lifting up and down distance 4000 mm, the working table may lift up/down , tilt and revolve by motors.
Double column elevating welding positioner is mainly used for solving problems of high position,also can weld seam provide low installation position. make the workpiece clamp and fix more easily .
The synchronous elevating type mainly use chain with 2 motors. The working table may be lift up and down . The working table may tilt by motor. The revolving device oftern use 1 motor drive two reducers .
This type machine often be produced according to customer's special requirement. Buyer must supply the workpiece basic technical dates to my factory .Then we will design for you and produce.

Main Technical Parameters

Head & Tail Stock Model	Loading Cap.(Tons)	Table Diameter (mm)	Rotation Center eight (mm)	Rotation Speed(rpm)	Power(kw)	Max Centroid Eccentricity(mm)	Weight (Tons)
HT0.5	0.5	600	600	0.15-1.5	0.75	300	0.9
HT1	1	800	800	0.15-1.5	0.75	200	1.5
HT2	2	800	800	0.15-1.5	1.1	150	1.8
HT3	3	800	800	0.15-1.5	1.5	150	3.0
HT5	5	800	800	0.1-1	1.5	150	4.5
HT10	10	1000	1000	0.1-1	2.2	100	8.0
HT15	15	1000	1000	0.1-1	2.2	100	10.0
HT20	20	1500	1200	0.08-0.8	3	100	14.0
HT30	30	1500	1200	0.05-0.5	4	100	20.0
HT50	50	2000	1500	0.04-0.4	5.5	100	25.0
HT100	100	2500	1700	0.02-0.2	7.5	100	35.0

Product Application:

With the working bench lifting up or down, turning and tilting, the work piece stays in the best position for being welded or assembled.

Product Advantage:

1. The VFD drive brand as Schneider ,France brand.

2. The motor brand as Siemens , Germany brand

3. Lower voltage electrical components brand as Schneider , France brand

4. The machine by shot blasting to remove steel rust

Competitive Advantage:

1.Convenient, high efficiency

2.high quality

3.Reasonable price

4.good service

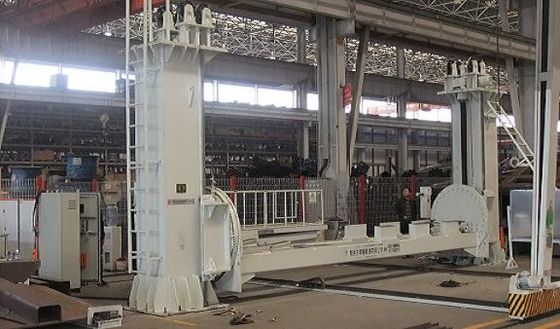

Loading 20 Tons Two Columns Welding Positioner Big Distance Between Two Fixed Columns 0

DWP20 / Elevating / Tilting / Revolving /

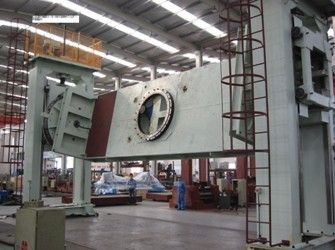

Loading 20 Tons Two Columns Welding Positioner Big Distance Between Two Fixed Columns 1

DWP8 / Elevating / Tilting /

Loading 20 Tons Two Columns Welding Positioner Big Distance Between Two Fixed Columns 2

DWP5 / Elevating / Tilting /
