Fixed Head Tail Rotary Welding Positioner 30 Tons Working table Revolving 360 Degree

Name: Fixed Head Tail Rotary Welding Positioner 30 Tons Working table Revolving 360 Degree
Brand: T M & B
SKU: HT30
Price: 1 USD
Availability: InStock
Rating: 4.7 (152 reviews)

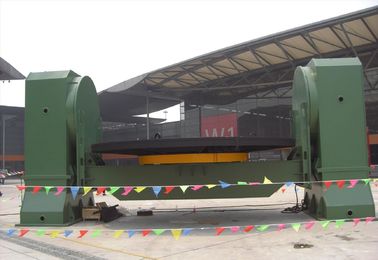

Large Image : Fixed Head Tail Rotary Welding Positioner 30 Tons Working table Revolving 360 Degree

Product Details:

Place of Origin:	China
Brand Name:	T M & B
Certification:	ISO/CE
Model Number:	HT30

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Bubble papers
Delivery Time:	45 daya
Payment Terms:	T/T
Supply Ability:	10 Sets/month

Contact Now

Detailed Product Description

Max Loading:	30000 Kg	Rolling Speed:	100-1000 Mm/min ( Max Borderline）
Overturning Speed:	0.05 Rpm	Rolling Motor:	11 Kw
Overturning Motor:	2 X 7.5 Kw	Working Table:	Diameter 4000 Mm
High Light:	automatic welding positioner , Pipe Welding Positioner

Fixed Head Tail Rotary Welding Positioner 30 Tons Working table Revolving 360 Degree

Description Details

Head and Tail positioner have a big round working-table as diameter 4000 mm, we may fix the workpiece on the table ,The workpiece may revolve and tilting .Workers may weld the seam easily and improve working efficiency.
Head and tail welding positioner mainly used for changing the workpiece position . let the welding seam in a good position .
Attention : The rotation center height to the ground is fixed , but the tail may may move on the ground or bed.
This type machine often be produced according to customer's special requirement. Buyer must supply the workpiece basic technical dates to my factory .Then we will design for you and produce.

Main Technical Parameters(Standard)

Head & Tail Stock Model	Loading Cap.(Tons)	Table Diameter (mm)	Rotation Center Height (mm)	Rotation Speed(rpm)	Power(kw)	Max Centroid Eccentricity(mm)	Weight( Tons)
HT0.5	0.5	600	600	0.15-1.5	0.75	300	0.9
HT1	1	800	800	0.15-1.5	0.75	200	1.5
HT2	2	800	800	0.15-1.5	1.1	150	1.8
HT3	3	800	800	0.15-1.5	1.5	150	3.0
HT5	5	800	800	0.1-1	1.5	150	4.5
HT10	10	1000	1000	0.1-1	2.2	100	8.0
HT15	15	1000	1000	0.1-1	2.2	100	10.0
HT20	20	1500	1200	0.08-0.8	3	100	14.0
HT30	30	1500	1200	0.05-0.5	4	100	20.0
HT50	50	2000	1500	0.04-0.4	5.5	100	25.0
HT100	100	2500	1700	0.02-0.2	7.5	100	35.0
