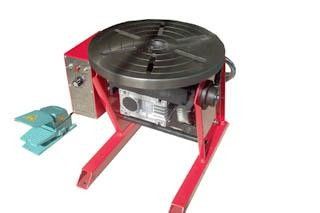

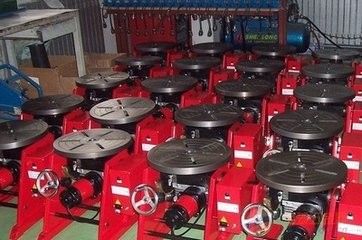

Batch Small Loading Production Elbow Weld Positioners VFD Drive Rolling Speed

Batch Small Loading Production Elbow Weld Positioners VFD Drive Rolling Speed
Batch Small Loading Production Elbow Weld Positioners VFD Drive Rolling Speed Batch Small Loading Production Elbow Weld Positioners VFD Drive Rolling Speed Batch Small Loading Production Elbow Weld Positioners VFD Drive Rolling Speed Batch Small Loading Production Elbow Weld Positioners VFD Drive Rolling Speed

Large Image :  Batch Small Loading Production Elbow Weld Positioners VFD Drive Rolling Speed

Product Details:
Place of Origin: China
Brand Name: TMP
Certification: CE
Model Number: TP05
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: discuss in letter
Packaging Details: With bubble papaer
Delivery Time: 15--25days
Payment Terms: TT,L/C
Supply Ability: 30 sets/month
Detailed Product Description
Max Loading: 50 Kg Working Table Diameter: 300 Mm
Revolve Speed: 0.3-3 Rpm Tilting Angle: 90 Degree
Revolve Motor: 0.1 Kw
High Light:

automatic welding positioner

,

Pipe Welding Positioner


Batch Small Loading Production Elbow Weld Positioners VFD Drive Rolling Speed


   In order to improve efficiency, we usually use some tools to change the position of the workpiece. After change the position, the workpiece can be assembled and welded easily.
   Welding Positioner is mainly used for transformations of workpiece position, Modification machine is mainly used for transformations of workpiece position, so that the workpiece is in the best position to achieve the welding assembling or position the work required, in order to improve the work efficiency.

     Welding Positioner is special welding auxiliary equipment, suitable for welding deformation of rotary work to get ideal processing position and welding speed. Modification machine can use with operating machines, welding machine to compose the automatic welding center, which also can be used for manual operation of workpiece displacements. Workbench rotation adoptedinverter stepless speed regulation, and the speed precision is high. Remote control box can realize the remote operation of workbench, also can connect with operating machines, welding machine system to realize linkage operation.

    According to the working state machine displacements, our company divided it into the following several categories: fixed tilting (TP), the head and tail lifting type (HTLP). According to customers' special needs, sometimes tail frame can also make portable.

Product Application:

With the working bench going up or going down, turning and manipulating, the work piece stays in the best position for being welded or assembled.

Product Advantage:
  1. Convenient, high efficiency
  2. high quality
  3. Reasonable price
  4. good service


Competitive Advantage:


  1. Electric control system composed of electric cabinet and manual control panel making it easy to operate.
  2. Equipped with slewing bearing which helps increase the loading capacity and makes the rotation smooth.
  3. Worktable is manufactured with six M30T bolt grooves used to clamp and position the work pieces.
Specification:

Type
Max Loading Kg

Table Diameter  mm

Revolve  speedrpm

Tilting Angle °

Tilting  Power KW

Revolving  Power KW

TP05
50
300
0---3
0---90
By hand
0.12
TP1
100
400
0---3
0---90
By hand
0.2
TP3
300
600
0---2
0---90
By hand
0.37
TP6
600
800
0---1
0---120
0.55
0.75
TP12
1200
1000
0---1
0---120
1.1
1.1
TP20
2000
1200
0---0.9
0---120
1.5
1.5
TP30
3000
1400
0---0.8
0---120
2.2
1.5
TP50
5000
1600
0---0.7
0---120
3
2.2
TP100
10000
2000
0---0.6
0---120
7.5
4
TP200
20000
2500
0---0.5
0---120
11
7.5
TP300
30000
3000
0---0.4
0---120
18.5
11
TP500
50000
3000
0---0.4
0---120
22
15
Remote control box line length:10m
The speed adjustment way: frequency conversion
