1. Simple introduction

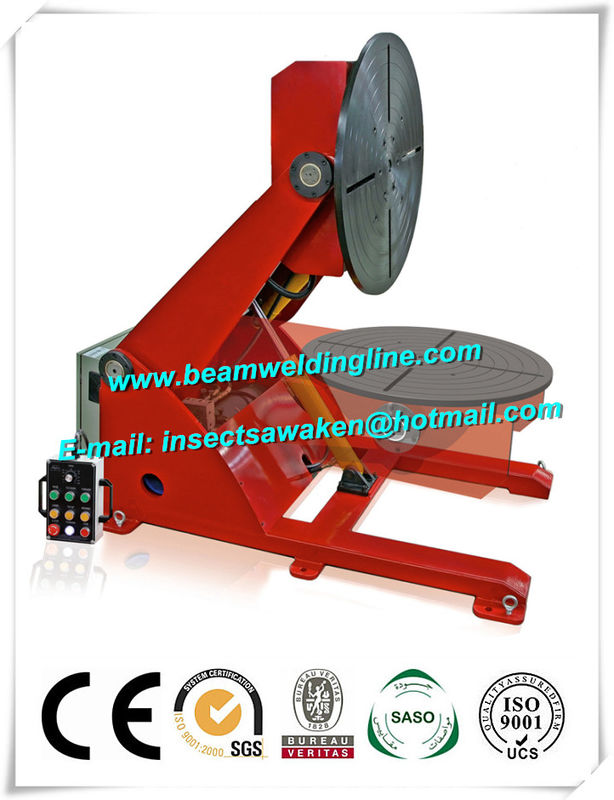

        Friendship Machinery welding positioner WP Series is designed to give maximum positioning flexibility by using the tilt, height and rotation of the table to manipulate the work piece into the correct ‘down hand’ position for welding or to position accurately for assembly and manufacturing requirements. The table is machined with four radial slots for anchor bolts and centric marking on the surface table, a set of tapered bearing mounted below the table to give a smooth and constant turning during operation.

        Powered driven by AC motor controlled by AC inverter system. A variable speed controlled by a standard control pendant with low voltage push button and potentiometer with a 6-metre control cable built in. Tilt movement is electrically powered driven by 1.5KW AC motor with dynamic braking through reducer gearbox. Built in with 800amps rotary clamp to ensure good earthing to the welding power  source.

2. Technical parameter

● Model: FSM-WP-3
● Table diameter 1000mm
● Maximum table height: 1660mm
● Minimum table height: 1020mm
● Pendant control: 24VAC circuit, push button with 6m cable
● Input voltage: 380-415V/ 3phase/ 50-60Hz (specify voltage requirement when ordering)
● Rotation capacity: 3 tons at 300mm centre of gravity
● Rotation speed: 0.06-0.6 rpm
● Tilting capacity: 3tons at 300mm eccentric loading
● Tilt range: 0 to 135 Degrees
● Tilt speed: 135 degrees in 50 seconds
● Rotation drive motor: 1.5KW
● Rotation drive control: 1.5KW AC inverter
● Tilt drive motor: 1.5KW motor C/W brake
● Estimate weight: 1200kg
