| Body Material: | Aluminum Alloy | Function Type: | Two Position Five Way |
|---|---|---|---|
| Max.Pressure Resistance: | 1.2MPa | Motion Pattern: | Direct Acting |
| Port Size: | G1/4”|G1/8” | Product: | Manual Directional Control Valve |
| Type: | Spring Return Type | Working Pressure: | 0~1.0MPa |
| High Light: | Pneumatic Valve,Directional Control Valve |
||

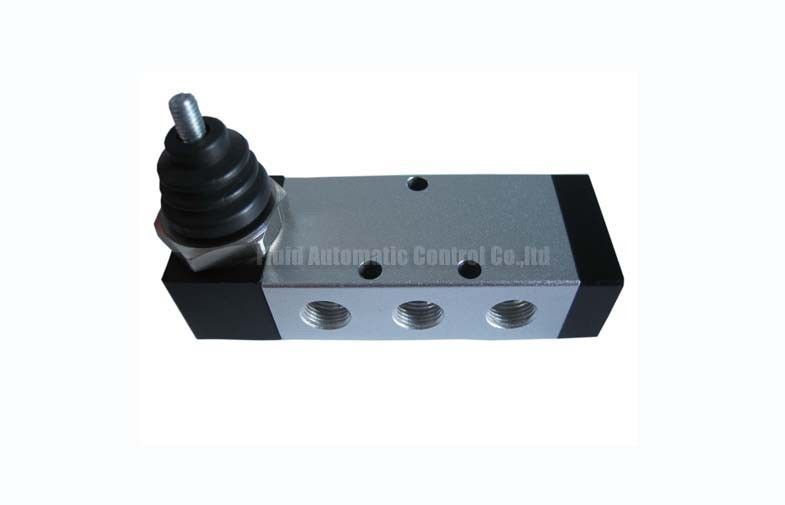

5 Way Manual Directional Control Valve VESTA Type Hand Lever Valve
VESTA type VHL series hand lever valve two positioni Five way,Three Position Five way port size G1/8”,G1/4” e.g VHL-253-06S with spacer sleeve design
Quick Detail:
*VHL series hand lever valve VESTA equvalent
*Two position Five Way and Three Postion Five way
*Spring return type for option
*Big angle safety area enlarged keep from leakage
*Smooth hand operating,small operating power
*Space sleeve design keep from friction to seal,long service life
Applications:
VHL series hand Lever valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system
Specifications:
ORDERING CODE | ||||
HLV | 2 | 53 | 06 | S |
Type | Body Width | Function Type | Port Size | Type |
HLV:VESTA type Hand Lever Valve | 2:30mm | 52:Two Position Five Way | 06:G1/8" | S:Spring Return |
08:G1/4" | ||||
SPECIFICATION | |
Model no | HLV Series |
Working Medium | Compressed 40 Micron Filtered Air |
Body Material | Aluminum Alloy |
Position And Way Numbers | Two Position-Five Way Three Postion Five Way |
Port Size | G1/8" G1/4" |
Motion Pattern | Direct Acting |
Working Pressure | 0~1.0MPa |
Max.Pressure Resistance | 1.2MPa |
Operating Temperature | 0~60℃ |
