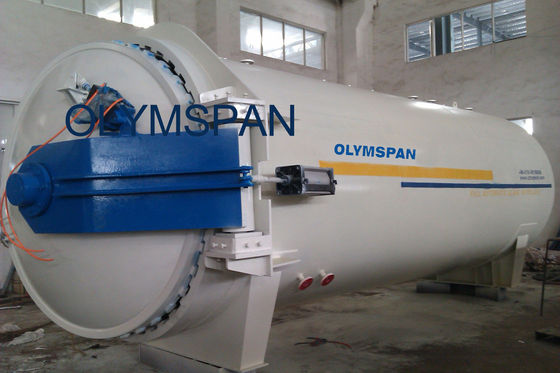

Temperature Laminated Chemical Industrial Autoclave / Auto Clave Machine Φ3.2m

Temperature Laminated Chemical Industrial Autoclave / Auto Clave Machine Φ3.2m
Temperature Laminated Chemical Industrial Autoclave / Auto Clave Machine Φ3.2m Temperature Laminated Chemical Industrial Autoclave / Auto Clave Machine Φ3.2m Temperature Laminated Chemical Industrial Autoclave / Auto Clave Machine Φ3.2m

Large Image :  Temperature Laminated Chemical Industrial Autoclave / Auto Clave Machine Φ3.2m

Product Details:
Place of Origin: China
Brand Name: OLYMSPAN
Certification: CE, ASME
Model Number: FGZSS
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: US $ 18,000 - 120,000 / Set
Packaging Details: Nude
Delivery Time: 1 Month
Payment Terms: T/T,L/C
Supply Ability: 30 Sets Per Month
Detailed Product Description
High Light:

autoclave lamination

,

Aerated Autoclaved concrete block

Temperature Laminated Chemical Industrial Autoclave / Auto Clave Machine Φ3.2m



Quick Details:

Inner diameter: 3.2m
Medium: Air
Design temperature: 150°C

Type: Laminated Chemical Autoclave
Applications: Glass, Brick,Rubber, Food, Chemical industry




Applications:

1. Chemical industry
2. Brick industry
3. Rubber industry
4. Food industry
5. Glass industry



Specifications:



Items Unit Specifications and Parameters
FJK1.4-1.65×4D FJK1.5-2×5D FJK1.5-2.5×5D FJK1.5-2.68×5D FJK1.5-2.85×5D
Inside diameter M 1.65 2 2.5 2.68 2.85
Effective length M 4 5 5 5 5
Design pressure Mpa 1.4 1.5 1.5 1.5 1.5
Design temperature °C 150 150 150 150 150
Working pressure Mpa 1.3 1.4 1.4 1.4 1.4
Working temperature °C 150 150 150 150 150
Medium   air air air air air
Gauge MM 900 1000 1000 1000 1000
Effective volume M3 10 18 25 28 31
Gross weight T 7 9 16 25 30
Overall dimension M 6×2.5×3 7×2.8×3 7×3×3.5 7.8×3.2×3.8 9×3.5×5



Description:

Chemical autoclave is a kind of key equipment, which is used for chemical deep-processing. To achieve the safety demands of laminated chemical through the pressure and heat treatment process.
It is widely used in automotive industry, aerospace, defense industry, building decoration, etc. It is equipped with the safety valve, the pressure gauge, the temperature element and so on.

Besides power driven, pneumatic ways to open the door, it also has the safety interlock. There are heating elements for warming & forcing and cooling device inside of the autoclave. It will automatic control and detect the opening and closing doors, temperature, pressure in autoclave by PLC controller, which is the chemical workpiece precess.




Competitive Advantage:

Autoclave is a kind of large-scale steam equipment. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products. Besides that, it also has a widely application in deep processing of chemical, chemical, rubber, thermal insulation material, medicine, high strength gypsum, sizing the fishing net industry and so on. We can manufacture various forms of the autoclaves according to the requirements of our customers.

Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.
