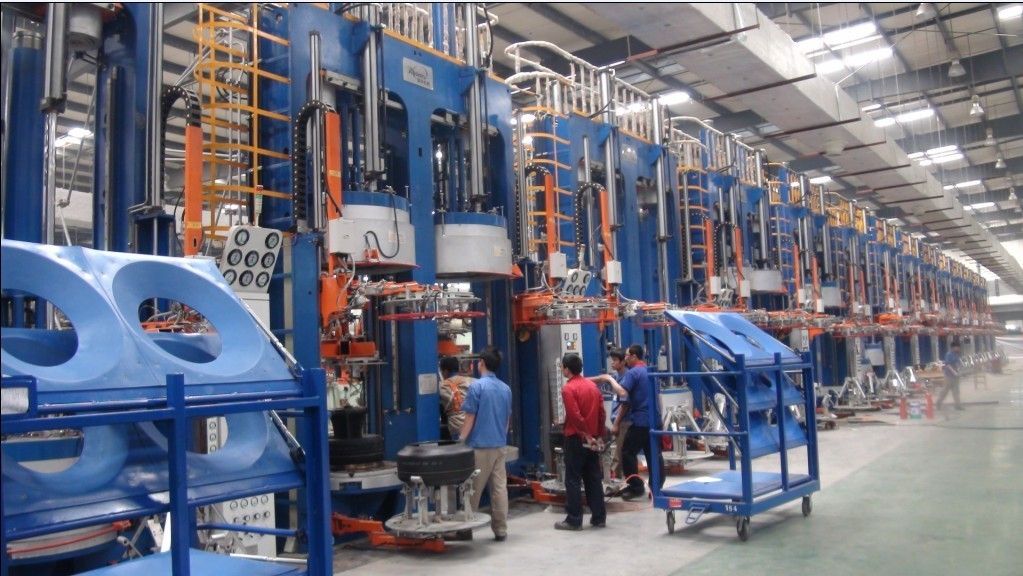

Segmented Mold Curing Equipment For Car Steel - Belted Tyre Vulcanization
Quick Detail:
Name |
Tire Curing Press |
Brand Name |
ROSNM |
Color |
As your request |
Feature |
B (B Center) ,B (hot plate), C (open die vertical lifting) ,4B (4 station after inflating device),Pressure mould locking force,Host structure frame |
Warranty |
1 year |
Place of Origin |
CHANGZHOU |
control |
PLC |
Certificate |
ISO9001 |
Description:
> Max Mould Closing Force:1850KN
> Hydraulic Pressure: 21Mpa
> Dia. of Platen:Φ1300mm
> Bead Range:14"-20"
> Air control pressure:0.7 MPa
> Maximum setting steam pressure:(Decided by user)
> Maximum inner pressure nitrogen of vulcanization: 2.4 MPa
> Maximum external pressure of steam: 1.4MPa
> Maximum inner pressure of steam: 1.6MPa
> Main power source: 3φ,380V,50Hz
> Control power source: 220V,50Hz or 24DC
Applications:
Used for vulcanization of steel-belted tire
Specifications
Model |
RUBBER TIRE |
Type of main drive |
Steel-belted tire |
Air control pres Maximum inner pressure nitrogen of vulcanization sure |
2.4 MPa |
Air control pressure |
0.7 MPa |
Mold number |
2 |
Mold type |
Segmental mold |
O.D. of mold |
≤1200 mm |
Height of mold |
250 mm- 500mm |
Diameter of hot plate |
1200mm |
Inner diameter of protective hood |
1220 mm |
Hydraulic station |
Five pieces for one |
Number of working positions |
4 working positions |
Position changing type |
Turn 180° |
Adjustment of chuck gap |
Manually/automatically |
Three pneumatic components (air pressure regulator, air filter and atomized lubricator) |
SMC |
Nitrogen balance valve |
USA HONEYWELL |
Rotary connector |
Japan ROCKY /Korea VALAS |
Hydraulic pump |
Japan YUKEN Germany REXROTH USA VIKERS |
Why to choose our Tire Curing Pr ess
1:Thread dimension of annular base: 51"vulcanizer:Tr180X62:Rack
2:It’s is structure type, with sufficient rigidity.
3:Main body
The main body consists of rack, opening and closing organization of mold, vulcanization house and adjusting mold organization, pressure organization, central organization and tire pushing device and so on.
4: Opening and closing organization of mold
Lifting movement and opening & closing movement of each mold is done by two oil cylinders and single-mold vulcanization can be fulfilled. Position of opening and closing mold is controlled by rotary encoder.
