20t Automatic Tilting Welding Roller Bed For Pipe Vessel Tank With ISO CE

20t Automatic Tilting Welding Roller Bed For Pipe Vessel Tank With ISO CE
20t Automatic Tilting Welding Roller Bed For Pipe Vessel Tank With ISO CE 20t Automatic Tilting Welding Roller Bed For Pipe Vessel Tank With ISO CE

Large Image :  20t Automatic Tilting Welding Roller Bed For Pipe Vessel Tank With ISO CE

Product Details:
Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO,CSA
Model Number: HGZ20
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: pls confirm with us
Packaging Details: Mainframe naked, spare parts packed in case
Delivery Time: 30working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 20set/month
Detailed Product Description
Function: Hold & Rotate Job Application: Cylindrical Job Welding
Rated Loading: 20ton Vessel Dia. Range: 500~3500mm
Roller Material: Polyurethane Speed Control: Variable Frequency Drive
High Light:

pipe turning rolls

,

self aligning welding rotator

20t Automatic Welding Turning Rolls Vessel Tank With ISO CE



Self aligned welding roller bed description:

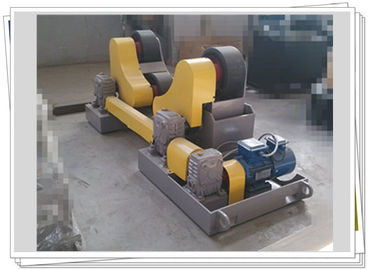

  1. The welding roller bed picture showed is stationary without bogie.

  2. The series welding roller bed is absorbing advantages of similar products at home and abroad, designed and manufactured by us according to the operation requirements of several pressure vessel factories.

  3. According with mechanical standard JB/T 9187-1999, automatic tilting welding roller bed is the device for special purpose adopted to weld metal cylinder especially pressure vessel.

  4. It has advantages of advanced technology, reliable quality and simple operation.

  5. Depends on different using purpose, the welding roller bed series includes the self-aligned, the adjustable, the vehicle, the tilting and the anti-drift types.

  6. This automatic tilting welding roller bed is used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber.

  7. It can be aligned by itself according to the size of the shell.

  8. It can be controlled with AC frequency converter, and the linear velocity is displayed by the digital.

  9. It has advantages of stepless speed adjust, low noise transmission and stable turning under the welding parameter in the range.

  10. We also can design and customize various types of the tank turning roll in accordance with the customers requirement.





Detail information:

  1. Automatic titling welding roller bed mainly consist of power unit, idler unit, electric control box and hand control panel.

  2. Welding roller bed is used for the inside and outside circumferential and  longitudinal welding.

  3. 20% overweight design, could making the rotator focus more.

  4. Each motors and reducers have cover, careful design, ensure the safety.

  5. All the parts using well-known brands in China or other countries. Quality is reliable.




More models technical parameters of the welding roller bed

Model

HGZ-20

HGZ-40

HGZ-60

HGZ-80

HGZ-150

HGZ-200

HGZ-300

Rated loading
(T)

20

40

60

80

150

200

300

Vessel diameter
range (mm)

500-3500

600-4200

750-4800

850-5000

1000-6500

1000-6500

1000-7000

PU roller
 dia. And width
(mm)

350*140

400*180

450*180*2

450*200*2

500*260*2

650*325*2

/

Metal roller
dia. and width
(mm)

/

/

/

/

/

650*250

750*280

Linear speed
 (mm/min)

100-1000mm/min

Speed control

Variable frequency drive speed control

Motor power
(kW)

1.5

3

4

4

5.5

2*5.5

2*5.5



Application:
1. Wind power fabrication
2. Pipe manufacturing industries
3. Pressure vessels
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job




Exhibition picture:

20t Automatic Tilting Welding Roller Bed For Pipe Vessel Tank With ISO CE 0





Name of the machine:
tank turning roll, pipe tank turning roll, pipe turning rolls, welding turning rolls, welding roller, tank turning rolls, pipe turning rolls, tube turning rolls, fit up rotator, self-aligned tank turning roll, self-aligning tank turning roll, self adjustable tank turning roll, self aligned roller stand, wheel frame, roller frame for wind tower welding, automatic adjustable welding pipe rotator, conventional tank turning roll, bolt adjustable tank turning roll, sand blasting rotator, painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station;
