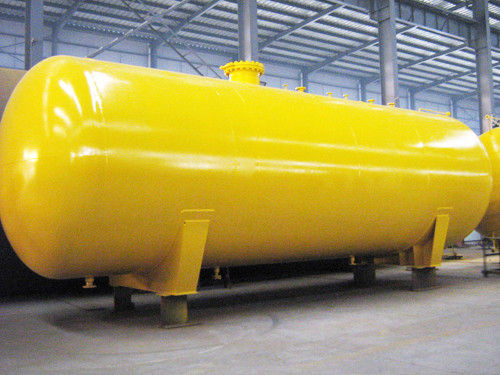

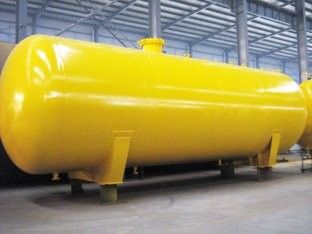

design Liquid ammonia storage pressure vessel tank engineering
This product is key equipment which has a widely application in petroleum liquefied gas station. It is also used in areas of chemical, textile, wood, metallurgy, military industry. Convenient operation, security and reliable are its advantages.
Autoclave belongs to pressure vessel which has explosion risk. According to the supervision regulation on safety technology for pressure vessel on divide standard of pressure vessel, the product is part of first and second class pressure vessel.
Liquid ammonia
1.License for A1.A2, liquid chlorine storage tank
2.Free freight
3. Certificate: ISO: 9001, ASME
4.Design, manufacture and installation of complete set of petroleum liquefied gas station for customer.
5. Give us your storage tank drawing, and then we could quote to you.
6. Normal volume 10000L- 100000L
|
Name |
Unit |
Parameters |
|
LPG brand |
/ |
CLW |
|
Tanker model |
/ |
CLG3200-100 |
|
Tanker volume |
L |
100, 000 |
|
Tanker loading |
MT |
46.8(For Liquid ammonia) |
|
Tanker material |
|
Q345R |
|
Tanker thickness |
mm |
20 |
|
Tanker vechicle size |
/ |
13020×3240×3900 |
|
Tanker DD |
/ |
3200 |
|
Tanker Curb mass |
kg |
22950 |
|
Design pressure |
Mpa |
2.16 |
|
Design temperature |
/ |
50 |
|
Filling factor |
/ |
0.52 |
|
Corrosion allowance |
mm |
2 |
|
Ladder |
Pcs |
1 |
|
Warranty |
1 year |
|
