Electro Hydraulic Directional Control Valve CMJF20 for 80 / 210 l / min

Electro Hydraulic Directional Control Valve CMJF20 for 80 / 210 l / min
Electro Hydraulic Directional Control Valve CMJF20 for 80 / 210 l / min

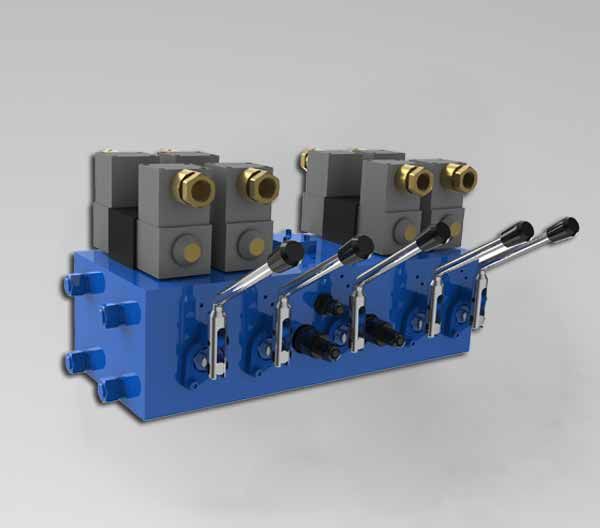

Large Image :  Electro Hydraulic Directional Control Valve CMJF20 for 80 / 210 l / min

Product Details:
Place of Origin: China
Brand Name: SJ Hydraulic
Certification: ISO9001
Model Number: CMJF20
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton
Delivery Time: 20days
Payment Terms: 30% deposit
Supply Ability: 1000 pcs per month
Detailed Product Description
High Light:

electro hydraulic valve

,

multi directional valve

Electro Hydraulic Directional Control Valve CMJF20 for 80 / 210 l / min



The maximum flow rate of the pump: 350l/min
The maximum flow rate of the actuator specifications: 80/210l/min (3/5)
Maximum pressure specifications: 420/400bar (3/5)
Manipulation modes: manual (handle)
          Electro-hydraulic control (remote control)
          Hydraulic control
Application: for several different load pressure actuator at the same time work
      Such as heavy object lifting and hoisting devices
      (Cranes, concrete pump trucks, logging equipment, high-altitude operation truck, etc.)



The valve is through the relative movement between the spool and valve body to change the connection on the valve body oil path off the valves. Multi-directional control valve is a valve as the main body by two or more combined valve. Depending on the job requirements, the safety relief valve, check valve and fill valve combination subsidiary valve. And compared to other types of valves, multi-directional control valve has a compact structure, small pressure loss, the slide valve movement resistance, a number of functions, long life, simple to manufacture.
