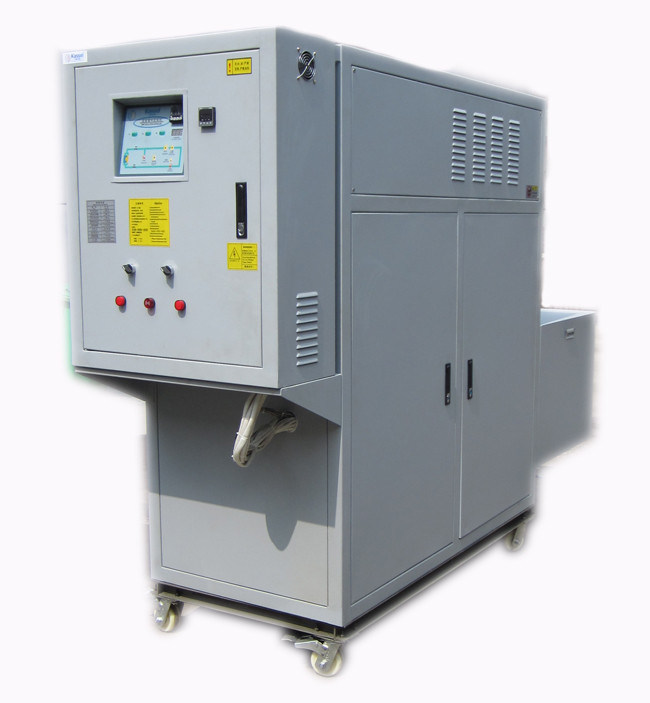

180℃ 24 kw High Temperature Water Temperature Control System / For Injecting Machine
Quick Detail:
KASSEL's KEWT water temperature control system maximizes performance with temperatures up to 180°C and system pressures up to 300 PSI.
MAX TEMPERATURE:180℃ power of heating :24 kw
Description:
All-purpose water-operated temperature control units up to 180°C are the core products of KASSEL’s product range. Due to the fact that these units are available in many different dimensions for the medium to high capacity range and cater to a wide variety of different temperature ranges, they are at the heart of many special and customized configurations. These units excel with utmost reliability and precision and offer a virtually unlimited number of options to cater to a wide variety of requirements.
Specifications:
|
Max temperature(℃) |
180℃ |
Power supply(KW) |
24 |
|
Pump pressure (KG/CM²) |
1.2 |
Max pump flow L/MIN |
235 |
|
Power |
380V 50HZ |
Control precision(℃) |
PID +/-1℃ |
|
Transfer medium |
WATER |
Cooling way |
direct |
|
Weight(kg) |
95 |
Pump power(KW) |
2 |
|
Alert function: pump reversal/oil shortage/overheating/overload/oil overflow |
|||
Competitive Advantage:
Non-proprietary microprocessor-based PID controller in easily accessible panel
High temperature safety shut-off switch
Pressure relief valve
Horizontal stainless steel heater canister with small hold-up fluid volume and stainless steel flow diverter, results in faster heat up and cool down
Cast brass fluid connections securely mounted to cabinet
Solenoid cooling valve
Removable panel for easy access to heater element (not shown)
Low pressure safety shut-off switch
Stainless steel pump with silicon-carbide seal
Heavy-duty removable casters for fixed location or portability
Epoxy powder-coated cabinetry
