| Effective Area Of Shelves: | 20 ㎡ | Input Capacity: | 200kg |
|---|---|---|---|
| Maximum Condenser Capacity: | 350Kg/batch | Power Consumption: | 85.6Kw |
| Highlight: | vacuum freeze drying machine |
||

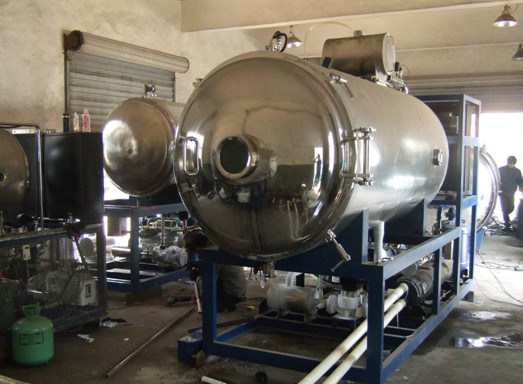

20 ㎡ Nutrition , Flower , Hospital Vacuum Freezing Dryer For Control temperature Or Vaccum
Description:
Biomedicine research:
Vacuum freeze-drying can long-term store blood, bacteria, artery, bones, skin, cornea, nerve tissue and organs etc which can regain water and rebirth competently.
Food industry:
Vacuum freeze-drying can be used in the drying vegetables, meet, fish, condiment instant food and specialties, keeping the food’s original fresh look, smell, taste, shape. The freeze-dried products can regain water competently can be easily longer stored and less-costly transported .
Nutrition and health care industry:
Vacuum freeze-dried nurture products such as Royal jelly, ginseng, terrapin, rainworm etc are more natural and original.
Pharmaceutical industry:
Vacuum freeze-drying can be used in the drying of Chinese and western leechdom such as blood serum, blood plasma, bacteria, enzyme, antibiotics, hormone etc.
Applications:
Food industry
Nutrition and health care industry
Pharmaceutical industry
Biomedicine research
Specifications:
|
ZG-20㎡ |
|||
|
Construction |
Technical Parameters |
Remark |
|
|
Base Structure |
|||
|
Effective area of shelves |
20㎡ |
|
|
|
Input capacity |
200kg/batch |
|
|
|
Maximum Condenser capacity |
350Kg/batch |
|
|
|
Power supply |
380V/50Hz/3P |
|
|
|
Power consumption |
85.6Kw |
380V/50Hz/3P |
|
|
Cooling Water |
15T/Hr (T＜28℃, P=0.1-0.15MPa) |
Recyclable |
|
|
Main Structure
|
Unity type: 4700*2300*2450mm (machine system: 2900*2000*2250mm) |
subject to the actual design |
|
|
Weight |
8000 Kg |
|
|
|
Dry Chamber |
|||
|
Dry Chamber Material |
SUS304/ 6mm thick |
|
|
|
Door lock |
Hand knob lock |
|
|
|
Door Open direction |
Right to left |
Decided by customer |
|
|
Open angle |
＞110° |
|
|
|
Door material |
SUS304 |
|
|
|
Dry Chamber Shape and dimension |
Cylinder φ1900×2700 |
|
|
|
Observation window
|
Frost-resistant glass φ220mm,δ25~27 |
Installed on the front |
|
|
Door seal |
Medical o section silicone rubber seal |
|
|
|
Temperature sensor |
T-type thermocouple |
|
|
|
Shelves (Heating Plates) |
|||
|
Shelf material |
6063 aluminum alloy |
|
|
|
Shelf dimension(L*W*H) |
2200*1200*15mm |
|
|
|
Shelf quantity.(pc) |
8+1 layers (total 18 pieces) |
The top layer of the shelves is temperature compensation |
|
|
Shelf Surfaceness |
Ra≤0.5um |
|
|
|
Distance between shelves |
95mm |
|
|
|
Aluminum alloy tray |
538×610×35mm |
64pcs x2sets, total 128pcs |
|
|
Shelf lowest temperature |
Room temperature |
|
|
|
Shelf highest temperature |
+120℃ |
|
|
|
Heating power consumption |
16Kw/380V/50Hz |
|
|
|
Condenser |
|||
|
Condenser Material |
SUS304/ 6mm thick |
|
|
|
Shape and dimension |
Cylinder ￠1900*1100 |
|
|
|
Coil pipe material |
SUS304 |
|
|
|
Coil shape |
Circular coil pipe |
|
|
|
Coil pipe water catching area |
≥25㎡ |
|
|
|
Defrost method |
spray + immersion |
|
|
|
Defrost water |
12.5 m3/h (T=50-60℃, P=0.1MPa) |
|
|
|
Refrigerant |
R404a |
|
|
|
Temperature sensor |
T-type thermocouple |
|
|
|
Condenser design temperature. |
-40℃,lowest -65℃ |
|
|
|
Cooling rate |
+30~-40℃≤30min |
|
|
|
Observation window |
Frost-resistant glass φ200,δ25~27 |
Installed on the front |
|
|
Refrigerating Unit |
|||
|
Compressor. |
Refcomp (Italy) SWIL-6500 65HP |
1set |
|
|
Power consumption |
48Kw |
|
|
|
Refrigerant |
R404a |
|
|
|
Shelf temperature uniformity |
+/-1℃ |
|
|
|
Oil separator |
Tianjin Fast |
1set |
|
|
Oil Filter |
Emerson (America) |
1set |
|
|
Oil pressure differential controller |
Fengshen |
1set |
|
|
Gas-liquid separator |
Emerson (America) |
1set |
|
|
Dehumidification drying filter |
Emerson (America) |
1set |
|
|
Manometer |
Jinhao |
3set |
|
|
High/low voltage protection relay |
Danfoss (Danmark) |
1set |
|
|
water-cooled condenser |
KAIDI |
1set |
|
|
Corrugated Damping Pipe |
Jinhao |
2pcs |
|
|
Manual stop valve |
Jinhao |
1set |
|
|
Refrigerating solenoid valve |
Emerson (America) |
1set |
|
|
Expansion valve |
Danfoss (Danmark) |
1set |
|
|
Red Copper Pipe |
φ22,φ16,φ12,φ10 |
|
|
|
Refrigeration Return-pipe |
φ57φ51φ38 Stainless steel seamless pipe |
|
|
|
Quick-freezing Room |
|||
|
Temperature |
≤-40℃ |
|
|
|
Room Dimension (L*W*H)(mm) |
3100*3040*3740mm |
1 set |
|
|
Door Dimension |
2000*1800*120 |
1set |
|
|
Fan |
80㎡ |
1 set |
|
|
Trolley (mm) |
1080*1410*865 SUS304 |
2 x 2sets (1set under freeze-drying; 1set under quick-freezing) |
|
|
Trolley rails |
12# I-beam |
|
|
|
Vacuum System |
|||
|
Vacuum Pump |
America Tuthill KT-150C 5.5KW |
1set |
|
|
Roots vacuum pump |
America Tuthill ZJ- 150 3KW |
1 set |
|
|
corrugated pipe |
φ76,φ108 |
Vacuum Pipe Shock Resistance |
|
|
Pump air flow |
150L/S |
|
|
|
Power consumption |
8.5Kw |
|
|
|
Butterfly valve |
GI-63 |
|
|
|
vacuum solenoid valve |
Ningbo |
Automatic open or close with vacuum pump |
|
|
vacuum gauge |
ZJ-54D |
|
|
|
Final vacuum |
≤3Pa |
No-load |
|
|
Pumping rate |
From the atmospheric pressure dropped to 133 Pa≤20min |
|
|
|
System leakage rate |
0.005 Pa.m3/sec |
|
|
|
Circulation System |
|||
|
Pipe material |
304 seamless pipe |
|
|
|
Circulation pump |
Denmark Grundfos LP series 1.1KW 20m3/hr |
1set
|
|
|
Power consumption |
17.1Kw |
|
|
|
Ball valve |
Shanghai DG50 |
Comply with the standard of Q/IAKX002-97 |
|
|
Circulating fluid |
Multiple fluid |
|
|
|
Heat exchanger |
(Sweden) |
1set |
|
|
Heating rate |
＞1℃/min |
|
|
|
Heating method |
Electric heating Pipe, 4Kw/pc x 4pcs |
Could use steam heating system if customer have |
|
|
Heating capacity |
860Kcal/hr x 16Kw = 13760Kcal/hr |
|
|
|
Control method |
Manual/Auto control |
|
|
|
Circulating fluid tank dimension |
￠300*500 |
|
|
|
Control System |
|||
|
System Monitoring Software |
Kassel |
1set |
|
|
Vertical control cabinet |
800×300×1500 |
Control,record |
|
|
Computer |
LENOVOL |
1set |
|
|
PLC |
SIEMENS CPU 226 CN AC/DC/relay |
1set |
|
|
Thermocouple extension module |
SIEMENS EM 231 CN 4(4 TC) |
2set |
|
|
Analog Input Module |
SIEMENS EM 231 CN(4 AI) |
1set |
|
|
HMI |
Taiwan PanelMaster PT070 |
1set |
|
|
Cable of HMI and PLC |
Kassel |
|
|
|
Constant current |
Kassel |
1 |
|
|
Switching Power Supply |
Taiwan MW company / 24V/5V |
24V 1pc; 5V 1pc |
|
|
Temperature sensor |
T-type thermocouple |
|
|
|
vacuum gauge |
ZJ-54D |
2 |
|
|
AC contactor |
SCHNEIDER (Germany) |
|
|
|
Air-break |
SCHNEIDER (Germany) |
|
|
|
Electric wire |
10㎡, 6㎡,4㎡,2㎡,1㎡ |
|
|
|
Quotation: |
|||
Competitive Advantage:
1) Our products are designed and produced completely according to European standard, which are oriented as high efficiency and high quality.
2) We have applied the CE, ISO9001 certificate for our products and get the good technical test report, who is the international famous third party test institute.
