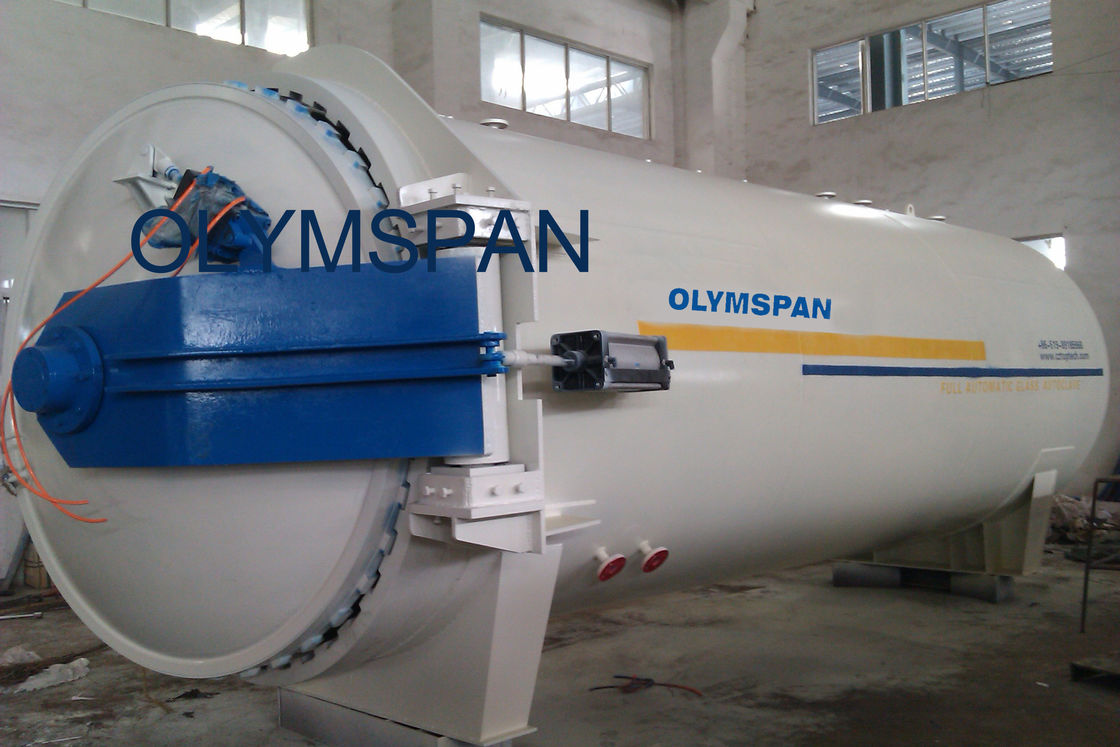

Chemical Laminated Glass Autoclave

Chemical Laminated Glass Autoclave Aerated Concrete / Autoclave Machine Φ2m

Applications

1. Wood industry
2. Brick industry
3. Rubber industry
4. Glass industry
5. Food industry

6.Chemistry industry

7.Spaceflight industry

6.Textile industry

Specifications:

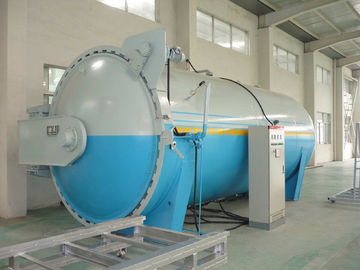

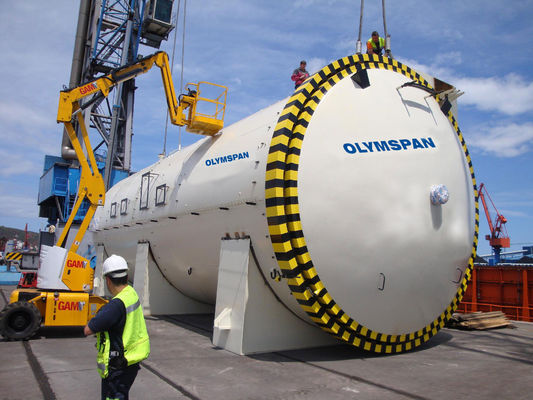

Cases display

Quick Details:

Inner diameter:2m or could be customized
Medium: compressed air
Overall dimension:6.454*2.8*2.4M  or depend on its inner diameter and length
type: Laminated Glass Autoclave
Raw Material: sand lime brick, flyash brick, slag brick, aerated concrete block, etc.

max glass size"1.7*4.5M

heating power:72KW

air tank:3 m³

Software:CPC

transportation dimension:6.545*2.58*2.4M



Description:

Glass autoclave is a kind of pressure vessel, which is used for glass deep-processing. To achieve the safety demands of laminated glass through the pressure and heat treatment process, we add safety interlock and limit block to it, And we altogether have tripartite precausions to ensure its safe operation and running.
It is widely used in automotive industry, aerospace, defense industry, building decoration, etc. It is equipped with the safety valve, the pressure gauge, the temperature element and so on.

Besides power driven, pneumatic ways to open the door, it also has the safety interlock. There are heating elements for warming & forcing and cooling device inside of the autoclave. It will automatic control and detect the opening and closing doors, temperature, pressure in autoclave by PLC controller, which is the glass workpiece precess.

Our glass autoclave is equipped with hydraulic pressure door-opening device;pressure maintaing and water exhausting devide;electric interlock device and light-sound alarm device. Hand reducer is equipped with mechanical interlock and could not be operated when there's no pressure inside the autoclave. Limit block is equipped to stop the door and after opening it, the door could be opened.

Competitive Advantage:

Autoclave is a kind of large-scale steam equipment. It can be used to steam sand lime brick, flyash brick, slag brick, aerated concrete block, cement pile and other cement products. Besides that, it also has a widely application in deep processing of glass, wood, rubber, thermal insulation material, medicine, high strength gypsum, sizing the fishing net industry and so on. We can manufacture various forms of the autoclaves according to the requirements of our customers.

Experts In our company absorbed the advantages of foreign similar products, and improved the strength calculation by analyzing the main pressure parts and doing all kind of stress test.
