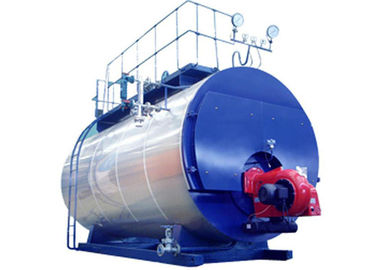

| High Light: | Gas Fired Steam Boiler |
||
|---|---|---|---|
Boiler parameter range:
WNS0.5~20t/h(0.35~14MW).
Technical characteristics

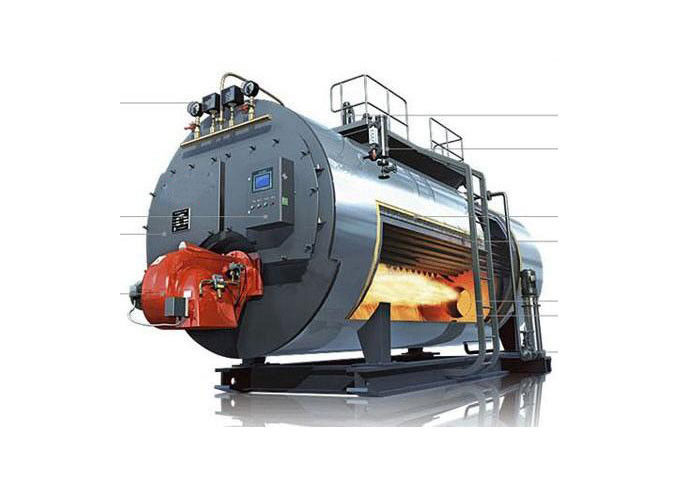

The boiler chooses the advanced wet back three-pass horizontal fire tube structure and the tube sheet anti-crack patent. It has the high efficiency & energy conservation economizer, condenser and oversea burner with better performance. This type of boiler has the characteristics of compact structure, good looking and full-automatic computer control.
Technical Specifications of WNS Series Full-automatic Oil/Gas-fired Steam Boiler:
|
Parameter/Data |
Model |
Model |
Model |
||
|
WNS0.5-1.0-Y,Q |
★ WNS1-1.0-Y,Q |
WNS1.5-1.0-Y,Q |
|||
|
WNS1-1.6-Y,Q |
|||||
|
Rated evaporation capacity |
t/h |
0.5 |
1 |
1.5 |
|
|
Rated working pressure |
MPa |
1 |
1 |
1 |
|
|
Rated Steam temp. |
℃ |
184 |
184 |
184 |
|
|
Water feeding temp. |
℃ |
20 |
20 |
20 |
|
|
Boiler heating area |
Boiler |
m2 |
15 |
34.25 |
41.8 |
|
Economizer |
m2 |
5.15 |
5.15 |
8.3 |
|
|
Condenser |
/ |
|
|
|
|
|
Flue gas Temp. |
℃ |
155/<80 |
160/<80 |
155/<80 |
|
|
Fuel available |
/ |
Light oil/Natural gas/Liquefied gas/City gas |
|||
|
Ringeiman blackness |
/ |
< class 1 |
< class 1 |
< class 1 |
|
|
Water pump model |
/ |
JGGC2-8x13 |
JGGC2-8x14 |
JGGC2-8x14 |
|
|
Water pump power |
kw |
2.2 |
2.2 |
2.2 |
|
|
Power source |
V |
380V/50Hz |
380V/50Hz |
380V/50Hz |
|
|
Boiler water capacity |
m3 |
2 |
4 |
5.3 |
|
|
Weight of boiler proper in transportation |
t |
3.1 |
6.1 |
7.6 |
|
|
Dimension of boiler in transporation(L*W*H) |
m |
3.2x1.8x1.9 |
3.6x2x2.3 |
3.7x2.2x2.5 |
|
|
Main steam value(DN ) |
mm |
50 |
65 |
65 |
|
|
Water feeding pipe(DN ) |
mm |
25 |
40 |
40 |
|
|
Chimney(Φ) |
mm |
316 |
316 |
400 |
|
|
Boiler back pressure |
Pa |
480/550 |
510/600 |
560/700 |
|
|
|
|
|
|
|
|
|
Parameter/Data |
Model |
Model |
Model |
||
|
★ WNS2-1.0-Y,Q |
★ WNS3-1.0-Y,Q |
WNS4-1.25-Y,Q |
|||
|
WNS2-1.25-Y,Q |
WNS3-1.25-Y. Q |
||||
|
Rated evaporation capacity |
t/h |
2 |
3 |
4 |
|
|
Rated working pressure |
MPa |
1 |
1 |
1.25 |
|
|
Rated Steam temp. |
℃ |
184 |
184 |
194 |
|
|
Water feeding temp. |
℃ |
20 |
20 |
20 |
|
|
Boiler heating area |
Boiler |
m2 |
61.1 |
91.8 |
125.1 |
|
Economizer |
m2 |
8.3 |
14.6 |
25.3 |
|
|
Condenser |
/ |
|
|
|
|
|
Flue gas Temp. |
℃ |
165/<80 |
158/<80 |
165/<80 |
|
|
Fuel available |
/ |
Light oil/Natural gas/Liquefied gas/City gas |
|||
|
Ringeiman blackness |
/ |
< class 1 |
< class 1 |
< class 1 |
|
|
Water pump model |
/ |
JGGC2-8x17 |
JGGC4-8x17 |
JGGC4-8x19 |
|
|
Water pump power |
kw |
3 |
3 |
4 |
|
|
Power source |
V |
380V/50Hz |
380V/50Hz |
380V/50Hz |
|
|
Boiler water capacity |
m3 |
6.3 |
7.6 |
9.6 |
|
|
Weight of boiler proper in transportation |
t |
8.8 |
11 |
14.2 |
|
|
Dimension of boiler in transporation(L*W*H) |
m |
4.4x2.2x2.5 |
4.7x2.2x2.9 |
5.3x2.5x2.9 |
|
|
Main steam value(DN ) |
mm |
65 |
100 |
100 |
|
|
Water feeding pipe(DN ) |
mm |
40 |
40 |
40 |
|
|
Chimney(Φ) |
mm |
400 |
530 |
530 |
|
|
Boiler back pressure |
Pa |
720/970 |
580/850 |
950/1310 |
|
Note:The fuelconsumption calculation shall as per the below data.
Diesel oil:10250kcal/kg(Low heating value); Natural gas:8700kcal/Nm3(Low heating value);
Liquefied gas:25800kcal/Nm3(Low heating value);City gas:4000kcal/Nm3(Low heating value);
Note:The data in the table are all for the boiler with mark ★.
