Product Details:
Payment & Shipping Terms:
|
| Material: | Ss304 Ss316L | Model Number:: | Steam Filter |
|---|---|---|---|
| MAX Operate Temp.: | 110 | Standard: | DIN/SMS/RJT/IDF/3A |
| Pressure Tolerance On Weld: | 0.85 | Corrosion By Acid: | 0 |
| Max Pressure: | 1.0 | Qty Of Cartridge: | 3-12 |
| Surface Finish: | Mirror Polish | ||
| High Light: | Air Filter Housing,Stainless Steel Filter Housing |
||

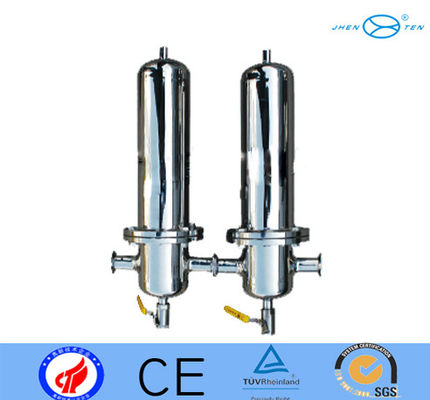

sus304 sus316L Stainless steel filter housing for gas filter element steam
Introduction:
Jhenten's gas filter is designed to help remove both moisture and solid particles,such as pipe scale and rust from the steam supply.It is an stainless steel element.A single closure nut allows for ease of maintenance.while a cleanable element ensures optimum efficiency and prolonged life.
The main use of the gas filter housing is to clean up factory or plant steam to reduce levels of contamination, such as boiler feed chemicals carried carried over from the boiler off take, so that the end products not adversely affected.
Inner surface: mirror polishing or electrolytic polishing.
Outer surface: matt, mirror polishing or electrolytic polishing.
Seal ring: food-grade silicone rubber seal ring, with quality assurance.
Locking type: clamp, sanitary casing or bolts can be fast assembled and disassembled.
Specificatios:
Gas Filter Housing
1) Matetial: 316L,304
2) Capacity: 1-round
3) Length: 10inch, 30inch
| Name | Inner surface |
|
Max Operate Pressure(MPA) |
1.0 |
| Max Operate Temperature (℃ ) | 110 |
| Pressure Tolerance on Weld | 0.85 |
| Corrosion by acid (mm) | 0 |
Filter Housing Operating Parameters
|
Item |
NO.OF Cartridges |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
|
ZTKQ-1R5 |
1*5" |
150 |
102 |
65 |
90 |
60 |
95 |
|
ZTKQ-1R10 |
1*10" |
300 |
102 |
65 |
90 |
60 |
95 |
|
ZTKQ-1R20 |
1*20" |
550 |
102 |
65 |
90 |
60 |
95 |
|
ZTKQ-1R30 |
1*30" |
800 |
102 |
65 |
90 |
60 |
95 |
|
ZTKQ-1R40 |
1*40" |
1050 |
102 |
65 |
90 |
60 |
95 |
|
Items |
Parameters |
| Max Operate temperature | 150ºC |
| Max Operate pressure | 10bar |
| Corrosion by acid | 0 mm |
| Industrial sure tolerance on weld | 0.85 |
Application:
1.Highly corrosive pure steam for sterilization of products and equipment in the biotechnology and pharmaceutical industries.
2.Steam for direct cooking of food products and sterilization of food and beverage containers
3.Clean steam for humidification of clean rooms in The pharmaceutical.biotechnology and electronic
4.Filtered /pure steam for autoclaves in the health care/pharmaceutical industries.
Work Shop
FAQ
1. Q: Does your company have any MOQ of your products?
A: No, We do not have MOQ requirement, For small orders we could deliver by courier.
2. Q: Does your company accept no-standard (customized) products?
A: Sure, As soon as you could provide drawings or details.
