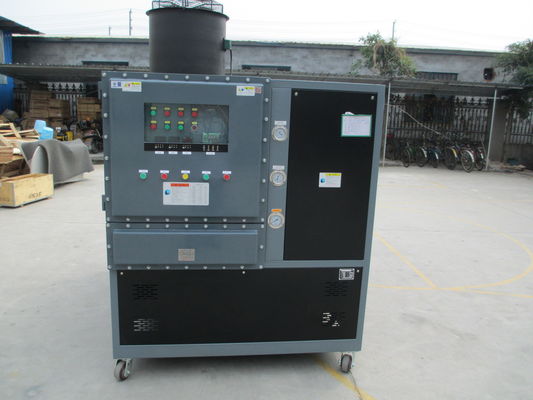

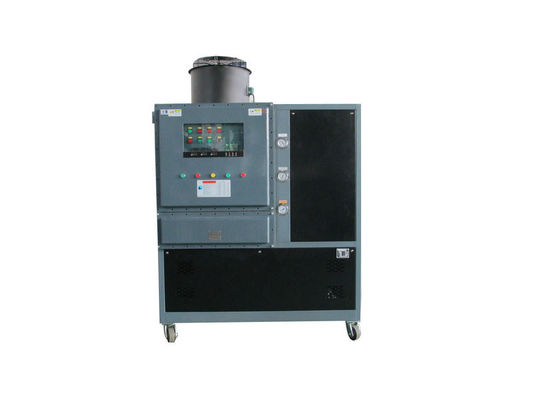

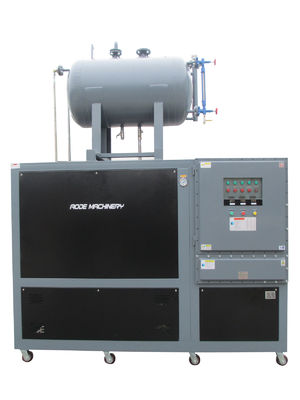

High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial

High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial
High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial

Large Image :  High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial

Product Details:
Place of Origin: China
Brand Name: Aode
Certification: ISO,CE
Model Number: AGBT-300-60
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Protective/air bubble film, Wooden case. As client’s requirement.
Delivery Time: Within 20days after receiving deposit
Payment Terms: 30% T/T in advance, 70% balance before we delivery
Supply Ability: 500pcs/month
Detailed Product Description
Product Name: Oil Temperature Control Unit Brand Name: AODE
Application: Plastic Injection Molding, Chemical Certification: CE, ISO
Cooling Method: Indirect Cooling Heat Transfer Medium: Oil
Power Supply: AC3∮380V Temp Control Accuracy: PID±1℃
Temperature Range: Max 320℃
High Light:

industrial chiller units

,

temperature control unit



High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial





Quick Detail:



1.safe and reliable

2. High temperature and low pressure

3. Furnace with double row pipe

4. Brand Name:AODE

5. Certification:CE & ISO

6. Head:72m

7. Maximum working temperature: 320℃





Description:



  • Save energy, low running costs, do not need complex water treatment equipment, save water resource, can alternative water heating boiler in water resource sub-shortage areas.
  • Precise temperature control: stable heating, precise temperature adjustment, automation.
  • High thermal efficiency: closed-cycle heating, no waste heat emission, load adaptability, can maintain optimum thermal efficiency under different conditions, high integrated thermal utilization efficiency.
  • Safe and reliable: complete operating control and safety monitoring device. Heating system runs opening, high safety factor.
  • High-temp and low pressure: can obtain a higher working temperature under lower operating pressure.
  • Well-known international brand burners and advanced automatic control system, the boiler combustion more stable, operation more convenient, safe and reliable.
  • Furnace with double row pipe, heating surface is sufficient to reduce the heat load of the pipe surface, the heat-conducting oil use safe.
  • Reasonable medium flow, thermal oil from the low (inlet) to high (outlet), generated gas can not stay in the furnace, the system can be easily discharged it.
  • The furnace size is matched with the burning flame, positive pressure combustion increase the radiation heat transfer efficiency





Specifications:



ITEM

UNIT

AGBT-300-60

Rated thermal power

KW

700

Thermal efficiency

%

85

Design pressure

Mpa

0.6

Maximum working temperature

320

Oil volume within the furnace

M3

0.5

Circulating oil

M3/h

60

Head

m

72

Piping nozzle caliber

mm

100

System installed capacity

KW

30

Size

L(mm)

3450



W(mm)

1980



H(mm)

2080





Competitive Advantage:



1. Strict quality control system

2. Three factories in shenzhen, tianjin and suzhou. More than 60 offices in China.

3. Our product is environmental and energy-saving

4. We have the production certification organic heat transfer material heater

5. High density heat insulation cotton and aluminum foil

6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

7. Imported microcomputer or PLC

8. Customization thick copper pipe 1.0-1.2





Applications:



Chemical Industry

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic  Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.




High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial 0



High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial 1

High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial 2

High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial 3



Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.

High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial 4

High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial 5

High Thermal Efficiency Oil Temperature Control Unit For Chemical Industrial 6
