Product Details:
Payment & Shipping Terms:
|

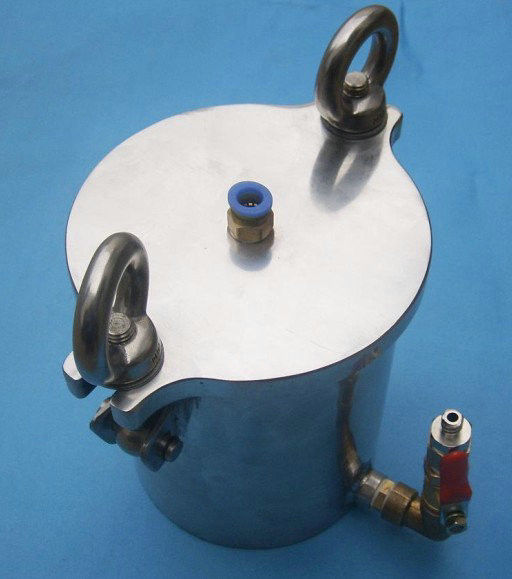

| Product Name: | Stainless Steel Pressure Tank /stainess Steel Pressure Epoxy Containor | Application: | For Epoxy Dispensing |
|---|---|---|---|
| Material: | 304 Stainless Steel | Standard: | CE/ROHS |
| Dimension(L*W*H): | 150mm*285mm*4.0 | Capacity: | 5L |
| High Light: | ss pressure vessel,dispensing tank |
||
Pressure tank for glue dispensing machine:
1. high quality with factory price.
2. The capacity can be custom made as your request.
3. Widely use in contain may kind of fluid ,such as:
UV glue; AB glue; EPOXY; white glue; conductive adhesive; SILICON; epoxy; instant glue; silver glue; red glue
Applicable fluid
Silica gel, EMI conductive adhesive, UV glue, AB glue, fast
dry glue, epoxy adhesive, sealant, hot glue, grease, silver
glue, red glue, solder paste, cooling paste, prevent solder
paste, transparent lacquer, screw fixation agent, etc.
Main use
1) Processing with bonding, infusion, coating, sealing, filling,
dropping, linear/ arc/ round gluing etc.
2) Dispense in point, line, surface, arc, circle and irregular
curve, and triaxial linkage function is available.
Volume | Weight(kg) | OD(mm) | ID(mm) | OUT Deepth(mm) | Inner Deepth(mm) | Thick(mm) | Cover dimension(mm) | Max Pressure (bar) | material |
1 L | 3.5 | 108 | 102 | 140 | 125 | 3 | 12 | 7 | stainless steel |
2 L | 4.5 | 133 | 127 | 180 | 165 | 3 | 12 | 8 | stainless steel |
3 L | 6 | 133 | 127 | 255 | 240 | 3 | 12 | 8 | stainless steel |
4 L | 7 | 159 | 152 | 245 | 230 | 3.5 | 12 | 8 | stainless steel |
5 L | 8 | 159 | 152 | 300 | 285 | 3.5 | 12 | 8 | stainless steel |
8 L | 16 | 219 | 210 | 250 | 235 | 4.5 | 14 | 8 | stainless steel |
10 L | 17 | 219 | 210 | 310 | 290 | 4.5 | 14 | 8 | stainless steel |
15 L | 19 | 219 | 210 | 450 | 435 | 4.5 | 14 | 8 | stainless steel |
20 L | 30 | 273 | 262 | 400 | 385 | 5.5 | 14 | 8 | stainless steel |
25 L | 33 | 273 | 262 | 490 | 470 | 5.5 | 14 | 8 | stainless steel |
30 L | 43 | 325 | 314 | 420 | 400 | 5.5 | 14 | 8 | stainless steel |
40 L | 46 | 325 | 314 | 540 | 520 | 5.5 | 14 | 8 | stainless steel |
60 L | 60 | 376 | 365 | 600 | 580 | 5.5 | 16 | 8 | stainless steel |
80 L | 89 | 425 | 410 | 620 | 600 | 7.5 | 16 | 8 | stainless steel |
