Product Details:
Payment & Shipping Terms:
|

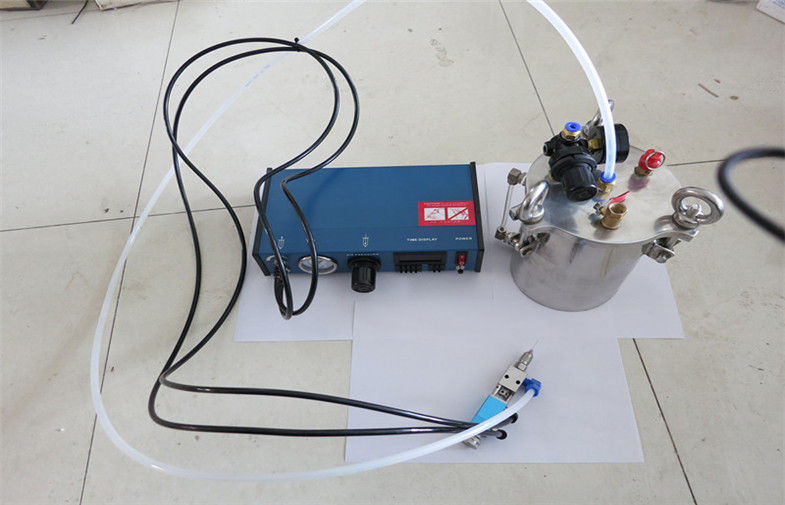

Product Name: | Dispensing Pressure Vessel /50L Stainless Steel Pressure Tank | Application: | For Epoxy Dispensing |
---|---|---|---|
Material: | 304 Stainless Steel | Standard: | CE/ROHS |
Dimension(L*W*H): | 150mm*285mm*4.0 | Capacity: | 50L |
High Light: | stainless steel pressure vessel,ss pressure vessel |
Specification
Volume | Weight(kg) | OD(mm) | ID(mm) | OUT Deepth(mm) | Inner Deepth(mm) | Thick(mm) | Cover dimension(mm) | Max Pressure (bar) | material |
1 L | 3.5 | 108 | 102 | 140 | 125 | 3 | 12 | 7 | stainless steel |
2 L | 4.5 | 133 | 127 | 180 | 165 | 3 | 12 | 8 | stainless steel |
3 L | 6 | 133 | 127 | 255 | 240 | 3 | 12 | 8 | stainless steel |
4 L | 7 | 159 | 152 | 245 | 230 | 3.5 | 12 | 8 | stainless steel |
5 L | 8 | 159 | 152 | 300 | 285 | 3.5 | 12 | 8 | stainless steel |
8 L | 16 | 219 | 210 | 250 | 235 | 4.5 | 14 | 8 | stainless steel |
10 L | 17 | 219 | 210 | 310 | 290 | 4.5 | 14 | 8 | stainless steel |
15 L | 19 | 219 | 210 | 450 | 435 | 4.5 | 14 | 8 | stainless steel |
20 L | 30 | 273 | 262 | 400 | 385 | 5.5 | 14 | 8 | stainless steel |
25 L | 33 | 273 | 262 | 490 | 470 | 5.5 | 14 | 8 | stainless steel |
30 L | 43 | 325 | 314 | 420 | 400 | 5.5 | 14 | 8 | stainless steel |
40 L | 46 | 325 | 314 | 540 | 520 | 5.5 | 14 | 8 | stainless steel |
60 L | 60 | 376 | 365 | 600 | 580 | 5.5 | 16 | 8 | stainless steel |
80 L | 89 | 425 | 410 | 620 | 600 | 7.5 | 16 | 8 | stainless steel |
100 L | 100 | 425 | 409 | 790 | 770 | 7.5 | 16 | 8 | stainless steel |
The Feature
1. high quanlity with factory price.
2. The capacity can be customed as your request.
3. Widely use in contain may kind of fluid ,such as:
UVglue;AB glue;EPOXY;white glue;conductive adhesive;SILICON;epoxy;instant glue;silver glue;red glue
Shipping
Payment terms | Paypal, T/T( 30%deposit in advance, balance before shipment),Western Union) |
Sample Time | we have stock for new Static Mixer, PE spiral mixer element for building sample |
Delivery Time | about 5 days according the order quantity |
Delivery terms | By express(DHL,EMS,UPS,FedEx-small order ), fob shenzhen by sea,CIF if special needed |
