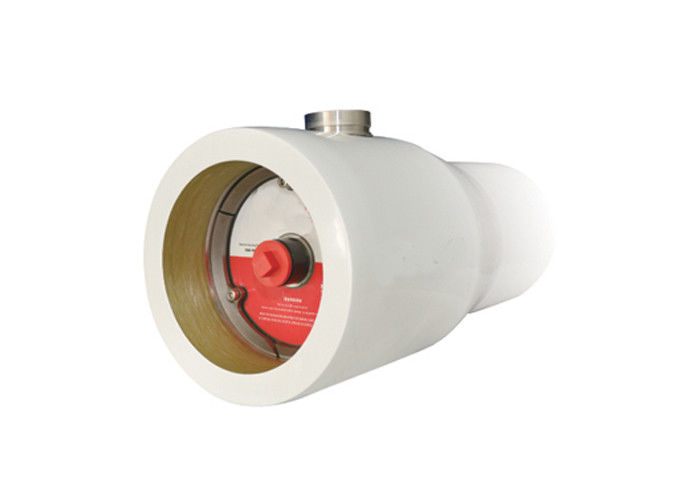

FRP pressure housings Reverse Osmosis Pressure Vessel 1200 psi side port

FRP pressure housings Reverse Osmosis Pressure Vessel 1200 psi  side port
FRP pressure housings Reverse Osmosis Pressure Vessel 1200 psi  side port

Large Image :  FRP pressure housings Reverse Osmosis Pressure Vessel 1200 psi side port

Product Details:
Place of Origin: China
Brand Name: Purescience
Certification: ASME/ISO9001/SGS
Model Number: F80-1200S-7W
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: negotiable
Packaging Details: wooden pallet
Delivery Time: 20 working days
Payment Terms: T/T, L/C, D/P
Supply Ability: 10000 pieces per month
Detailed Product Description
Product Name: FRP RO Membrane Pressure Housings Pressure Rating: 600psi / 1000psi / 1200psi
Port: Side Port Color: Blue , White
Nos Of RO Element: 1 , 2 , 3 , 4 , 5 , 6 , 7 Size: Dia. 8.0 "
Operation Temperature Range: -10°C ---49°C Test Pressure: 1.5 X Design Pressure
High Light:

RO pressure vessel

,

FRP pressure vessels

8" RO membrane FRP pressure housings for High pressure water treatment system 1200 psi  side port



Specification

Model

Design

pressure

Membrane

element

Nos of

elements

Color Options
End port Side port
F8040E-300-(1-7)W F8040S-300-(1-7)W 300psi 8040 1-7

W:white;

B:blue

Double side ports
F8040E-450-(1-7)W F8040S-450-(1-7)W 450psi 8040 1-7

W:white;

B:blue

Double side ports
F8040E-600-(1-7)W F8040S-600-(1-7)W 600psi 8040 1-7

W:white;

B:blue

Double side ports
F8040E-1000-(1-7)W F8040S-1000-(1-7)W 1000psi 8040 1-7

W:white;

B:blue

Double side ports
F8040E-1200-(1-7)W F8040S-1200-(1-7)W 1200psi 8040 1-7

W:white;

B:blue

Double side ports


Description
We engineer high quality pressure vessel solutions that fit your need. We provide:

  • Pressure vessels for small to medium size plants
  • Pressure vessels for large commercial size plants
  • Custom-designed vessels with high chemical resistance
  • Installation and after-market services

FRP pressure housings Reverse Osmosis Pressure Vessel 1200 psi  side port 0
Key Features

  • Mirror finish I.D for easy & quick loading & unloading of membranes.
  • Multi-Porting option for connecting vessels to each other.
  • High operation temperature upto 49℃ comes as a standard feature.
  • Quick lock head retention system for quick access to membranes.
  • Exteriors coated with high gloss polyurethane paint for UV resistance.
  • ASME compliant
  • Flat surface for superior and reliable sealing of side ports.
  • Threaded side ports for quick and easy onsite maintenance/serviceability.

Applications:
Water treatment, waste water treatment, seawater desalination, reverse omosis, RO system

Competitive advantage:
Rich experience in FRP pressure vessel engineering and design; we specialize in the manufacture of high quality pressure vessels. Pressure vessels designed to provide long-term, trouble-free operation, with minimal down time and improve running costs. State of the art equipment to ensure high quality pressure vessel solutions that fit our customer’s demands.

FRP pressure housings Reverse Osmosis Pressure Vessel 1200 psi  side port 1
