| Model: | HGKS60 | Suitable Diameter: | 800--4800mm |
|---|---|---|---|
| PU Roller Diameter And Width: | (400*200)*2 | Linear Speed: | 6--60m/h |
| Upper Roller-bed Unit Adjusting: | Motorized Lead Screw | Travel Bogie Moving Speed: | 2000mm/min |
| High Light: | vessel turning rolls,Pipe Rotators for Welding |
||
1. Purpose and Applicable Range
This tank rotators are motorized lead screw type with motorized travel bogie. Its structure is upper roller-bed and lower roller-bed. The lower roller-bed is adjustable by motorized lead
screw too. User can adjust and align by motorized roller and lower roller-bed for fine adjusting and aligning. This product is used for pipe fit-up and welding or wind tower production.
2. Main Technical Parameters
|
No |
Item |
Parameters |
|
|
1) |
Model |
HGKS60 |
|
|
2) |
Rated load and rotation capacity (T) |
60 |
|
|
3) |
Suitable work-piece |
d mm |
800 |
|
D mm |
4800 |
||
|
4) |
Roller Dia. and Width |
D1 |
400 |
|
W3 |
200*2 |
||
|
5) |
Linear speed (m/h) |
6-60 |
|
|
6) |
Way of speed control |
VFD |
|
|
7) |
Motor power (kW) |
2*2.2 |
|
|
8) |
Roller distance A(mm) |
Min |
800 |
|
Max |
2000 |
||
|
9) |
Roller distance adjusting |
Motorized lead screw |
|
|
10) |
Motor power for roller distance adjusting (KW) |
0.55KW |
|
|
11) |
Upper roller-bed unit |
Motorized lead screw |
|
|
12) |
Motor power for upper roller-bed adjusting (KW) |
0.75KW |
|
|
13) |
Roller bed travel |
Motorized |
|
|
14) |
Motor power for travel bogie |
0.75KW*4 |
|
|
15) |
Travel bogie moving speed (mm/min) |
2000mm/min |
|
|
16) |
Power supply |
440V 60HZ 3P |
|
3. Characteristics and Performance
The HGKS series is welding turning rolls adjusted by motorized lead screw. East set consists of one
driving turning roll, one idler turning roll and electric system.
Distance between two rollers is adjusted by motorized lead screw; Driving turning roll adopts double driving, 2 rollers are driven by 2 motors via 2 reducers; the output speed of 2 motors
controlled by one inverter, which can ensure the same linear speed for two driving rollers. Work piece
revolves stably;
its linear speed can meet demands of various welding as manual welding, strip welding and auto SAW etc.
The upper roller beds of both driving and idle units also can be motorized adjusting. And the driving and idle units can be motorized traveling.
Two rollers, two motors and reducers are fit on the pedestal of driving frame. Two idler rollers are fit on the bed of idler frame.
Both power and idler rollers are PU rollers with high rigidity, good wearability and long life.
For different Dia. of work piece, adjust distance between two rollers by motorized lead screw.
After putting work piece, make sure the surrounding angle is between 45°～110°.

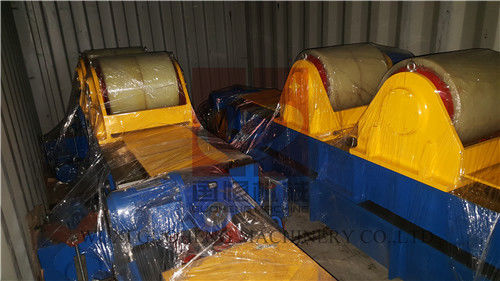

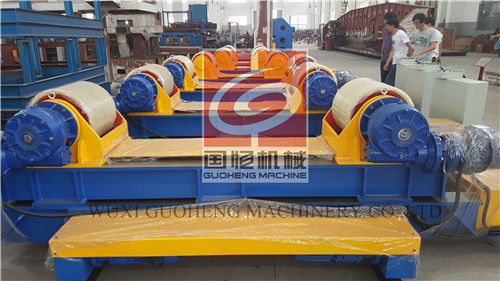

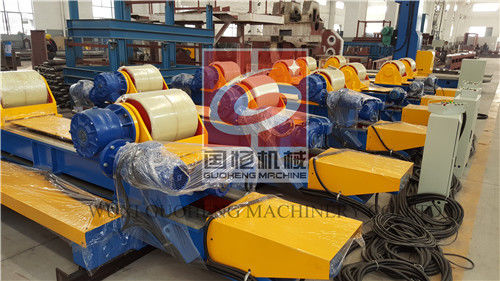

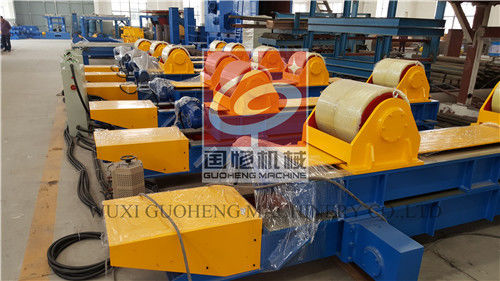

4. Reference Photos
