Down Press Type Pinch And Turning Pipe Welding Rotator With Frequency Control

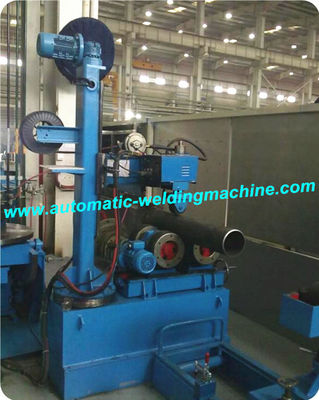

Hình ảnh lớn : Down Press Type Pinch And Turning Pipe Welding Rotator With Frequency Control

Thông tin chi tiết sản phẩm:

Place of Origin:	CHINA
Hàng hiệu:	Friendship Machinery
Chứng nhận:	CE, ISO9001
Model Number:	PP Series

Tiếp xúc

Chi tiết sản phẩm

Làm nổi bật:	Self-Aligned Welding Rotator

Down Press Type Pinch And Turning Pipe Welding Rotator With Frequency Control

1. Main features

Pinch and turning pipe welding rotator adopts the advanced international program hydraulic station system, which can adjust the altitude pressure and add or release the pressure very accurately and stably; The electric temperature controller can heat very accurately and the real temperature can be clearly displayed on the meter. The twin clamps can hold/fix the joints very stable and accurate. This machine can be in assembly and as a whole at any option. The power supply can be specially designed as per the buyer’s requirement.

2. Technical data

Model	PP3
Max loading capacity	3000Kg
Applied work-piece dia./mm	Φ100-Φ1060mm
Maximum work-piece length	1500mm
Rotation speed	70-1700mm/min
Rotate torque	1000Nm
Tilt torque	5000Nm
Tilt degree	±40°
Tilt center height	910mm
Speed adjustment	AC Inverter
Pendant cable length	5m
Power	2.4KW
Weight	2000Kg

3. Structure characteristics

a. Workpiece rotation drive with frequency control, stepless speed.
b. Workpiece clamping force can be adjusted according to the workpiece circumstances, to meet the drive requirements.
c. Device configuration of the axial anti-traverse installation.
d. Depending on the welding process, can be MAG/MIG/CO2 gas protection welding.
e. Gas-welding torch has a swing function, enabling welding of thick wall pipe filling and capping the swing when welding.Automatic padding feature.
