| Max. Swing Diameter: | 195mm | Voltage: | 380v |
|---|---|---|---|
| Power(W): | 4kw | Dimension(L*W*H): | 1420*1120*1750mm |
| Weight: | 800kg | x/z repeated position accuracy: | 0.012/0.013mm |
| Làm nổi bật: | CNC Lathe Machinery |
||

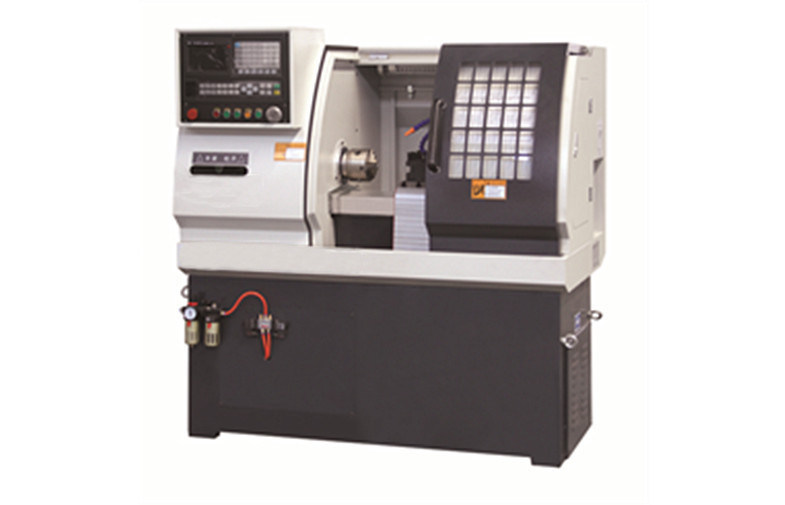

Hard guide way CNC Computerised Lathe Machine with high rigidity line cutter
Quick Detail:
Description:
1. Factory and office building
1)All the guide surface are performed quenching.
2) Factory covers 120,000 square meters including casting,machinning,assemble workshops, above 70
intermediate and senior technical personel.
3) Our casting workshop adopts lost foam to guarantee the size and precision of casting parts.
4) All the parts are performed heat treatment, natural failure, vibrating stress relief(VSR) to relieve internal stresses.
5)All of our products have passed the CE ISO approval
6) We implement assembly line,and the assemble workshop includes feed box team,gear box team,worktable
team,hydraulic unit team,scrabbing team,drilling hole team,power distrubition team,daubing and painting team,
test team and after-sale service team.
7) ERP infomation management makes our production and management more and more standardization,
networked and refinement.
2. Usage
suitable for small work piece with the diameter less than 32mm and the length less than 100mm to process at the high rotary speed from the speed 150-2500 rpm.
Applications:
Widely used in processing and manufacturing the electrical appliance, instrumentation industry, automobile,
motorcycle, fastener bearings, photographic and fim machinery, hardware tools, watches, glasses, stationery, motors, valves and gas pipe and other high precise and complex components. It is the ideal high effiient equipment in the hardware machining industry
Specifications:
| Specifications | Unit | J32 |
| Maximum swing over bed | mm | Φ190 |
| Maximum swing over cross slide | mm | Φ80 |
| Maximum processing length | mm | 200 |
| Thu-hole dia of spindle | mm | Φ37 |
| Drawing pipe dia. | mm | Φ32 |
| Spindle speed | rpm | 150-2500 |
| Work piece clamping way | Pneumatic living spirit type clamp clamping | |
| Spindle motor power | kW | 3 |
| Inverter power | kW | 4 |
| X/Z axis torque | N·m | servo 4/4 |
| X/Z axis fast feeding speed | m/min | 8/10 |
| Tool post type | gang tool type post | |
| Tool numbers | 4 pieces | |
| Tool bar section | mm | 16*16 |
| Tailstock type | no | |
| Guideway | make guide | |
| NW | kg | 800 |
| Machine dimensions (L*W*H) | mm | 1450*1100*1600 |
| Item | J35 |
| Max. swing dia. over bed | 250mm |
| Max. swing dia. over cross slide | 116mm |
| Max. processing length | 320mm |
| Spindle nose | A2-5 |
| Through hole dia. of speed | 48mm |
| Through hole dia. of drawing pipe | 40mm |
| x/z repeated position accuracy | 0.012/0.013mm |
| x/z travel | 300/320mm |
| x/z rapid feeding speed | 5/10m/min |
| Spindle speed | 150-2200rpm |
| Tool holder | 4-station raw tool |
| Main motor power | 3kw |
| Dimension | 1420*1120*1750mm |
| Net weight | 800kg |
Feature
1. High compatibility -- The CNC programming system adopts the international ISO code and keyboard input, could realize data transmission with PC by RS232 communication port.
2. High and long term stability--Machine cast is of hardness over HRC45 degrees after HRC hardening
3. Higher rotation speed and higher rigidity ---Spindle bearing adopts the high-precision angular contacting bearing; specially designed pre-load ensures the
higher rotation speed and higher rigidity.
4. Outstanding dynamic performance and high positioning accuracy --The carriage in both vertical and horizontal direction is driven by highprecision ball screws, which has satisfactory dynamic
performance and high positioning accuracy.
