Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Product Name: | 5Ton High Speed Auto Rotary Pipe Welding Positioners | Application: | Pipe loading and rotary |
|---|---|---|---|
| Type: | Self adjustable | T slot No.: | 8 |
| Revolve Speed control: | VFD | Tilting speed: | Constant |
| Work-table shape: | Round or custom | Special design: | Available |
| Loading: | 5000kg | Lifting adjustable: | NO |
| Làm nổi bật: | pipe welding positioners |
||

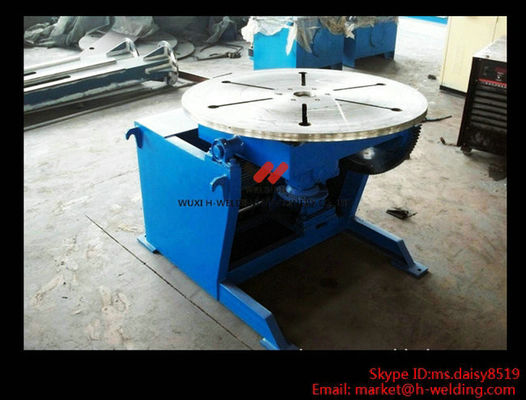

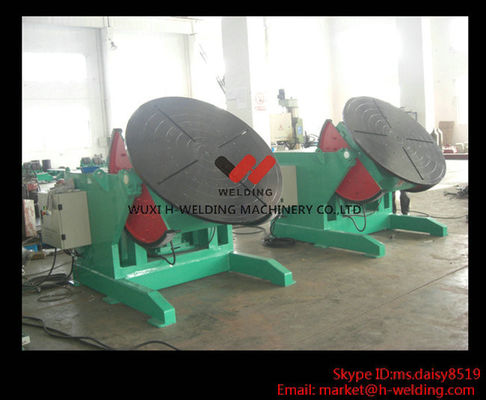

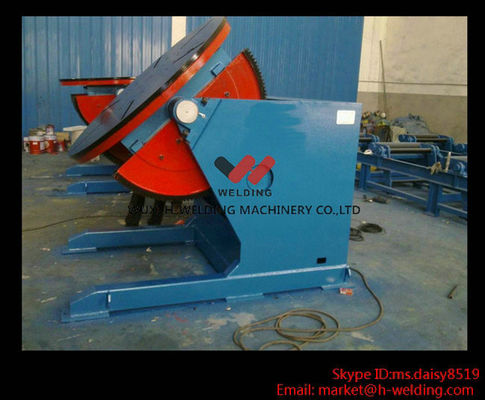

5Ton High Speed Auto Rotary Pipe Welding Positioners Heavy Duty Loading For Tank / Pipe / Vessel
Specifications:
|
No. |
Item |
||||||
|
1 |
Model |
ZHB-03 |
ZHB-06 |
ZHB-12 |
ZHB-30 |
ZHB-50 |
ZHB-100 |
|
2 |
Rated load (kg) |
300 |
600 |
1200 |
3000 |
5000 |
10000 |
|
3 |
Max eccentric distance (mm) |
100 |
150 |
200 |
200 |
200 |
200 |
|
4 |
Max distance of the gravity center (mm) |
150 |
200 |
250 |
300 |
300 |
400 |
|
5 |
Worktable φ D (mm) |
600 |
1000 |
1200 |
1400 |
1500 |
1800 |
|
6 |
Tilting angle(°) |
0-90 |
0-90 |
0-120 |
0-120 |
0-120 |
0-120 |
|
7 |
Rotating speed (rpm) |
0.15-1.5 |
0.11-1.1 |
0.11-1.1 |
0.11-1.1 |
0.05-0.5 |
0.03-0.3 |
|
|
Speed control |
VFD for rotation speed |
|||||
|
8 |
Tilting speed (rpm) |
manual |
1.1 |
0.4 |
0.23 |
0.2 |
0.14 |
|
9 |
Rotating motor power(kW) |
0.18 |
0.55 |
0.75 |
1.5 |
2.2 |
3 |
|
10 |
Tilting motor power(kW) |
/ |
0.75 |
1.5 |
2.2 |
3 |
4 |
|
11 |
Worktable T slot qty |
4 |
4 |
6 |
6 |
6 |
6 |
Description:
Applications:
Competitive Advantage:
Người liên hệ: Mr. wei
Tel: 18990909900
Fax: 86-190-457-3333
