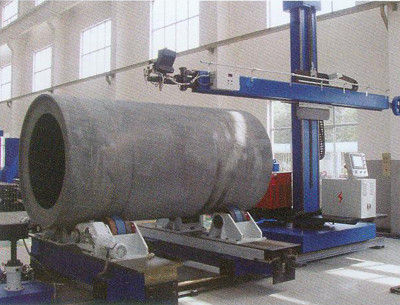

WM5050 Heavy Standard Automatic Electric Welding Vessel Manipulator / Welding Equipment / Welding Center

   The manipulator have many function: the boom may retracting by VFD change speed from 100-1000 mm/min , the welding head may fix on the cross slide , the welding power may fix beside the column. the flux recovery system was fixxed at the end of the boom.

   Usually the bed was fixed on the earth , rotating by motor or hand, moving on the guider by motor.

The column and boom guider of our company all adopt widened rectangular type, These ensure stretching and lifting is in particular stable and reliable.

Mechanical Structure Illustration

a)Column and Boom

Rectangular size is different according to the WM type.

b)Guider Units

This type adopts the way of combining the pinch roller and the guide pulley to clamp the guide rail,which makes the boom lift and retract smoothly.

c) Boom Retracting

The retracting type is:Motor--Worm gear reducer—gear shaft---the boom moving.The speed adjust by AC VFD,so the speed may change.

d)Column Revolving

Re-voling adopt motor worm gear and gears type. Rotary support may ensure the column revolving safety .

e)Cross Slide(motor)

The welding head was fixed on the cross slide. Slide adopt motor control.Usually the stroke is 100 mm

f)Electric Power Structure illustration
