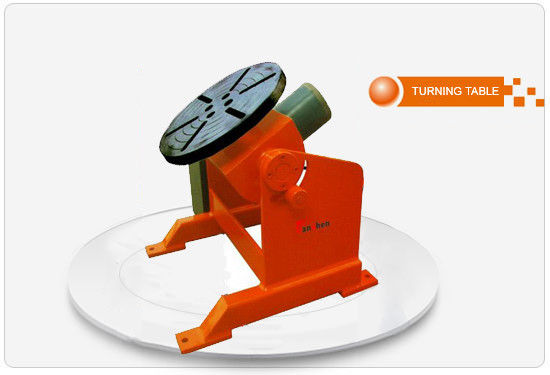

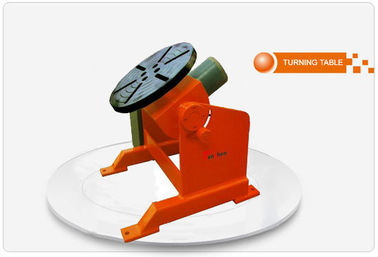

Adjustable Welding Turning Table Steel Lifting For Automatic Welding Equipment
Application range:
For automatic welding or cutting of complicated workpiece such machine frame,machine base,flange,ball vessel,etc.
Specifications:
| Type | Rated weight | Gyration velocity |
Over turning velocity |
Turning angle | Size of | Power | Way | Max eccentricity |
Max barycenter |
Max gyration | |
|
bearing (Kg) |
of working table (rpm) |
of working table (rpm) |
of the working table(°) |
working table (mm) |
(kw) | of setting | distance under |
distance under |
diameter in | ||
| gyration | overturn | rated load(mm) |
rated load (mm) |
position 90. | |||||||
| HSB-1 | 100 | 0.4-4 | Manual driven | 0-120 | Ф400 | 0.06 | / | Frequency | 150 | 100 | Ф600 |
| HSB-3 | 300 | 0.2-2 | Manual driven | 0-90 | Ф600 | 0.37 | / | Conversion | 150 | 100 | Ф800 |
| HSB-6 | 600 | 0.09-0.9 | 1.1 | 0-90 | Ф1000 | 0.75 | 0.75 | Stepless speed | 150 | 100 | Ф1500 |
| HSB-12 | 1200 | 0.05-0.5 | 0.67 | 0-120 | Ф1200 | 1.1 | 2.2 | Frequency | 200 | 150 | Ф2050 |
| HSB-30 | 3000 | 0.05-0.5 | 0.23 | 0-120 | Ф1400 | 1.5 | 1.5 | Conversion | 200 | 200 | Ф2100 |
| HSB-50 | 5000 | 0.05-0.5 | 0.14 | 0-120 | Ф1500 | 2.2 | 3 | Stepless speed | 300 | 300 | Ф2500 |
| HSB-100 | 10000 | 0.05-0.5 | 0.14 | 0-120 | Ф2000 | 3 | 5.5 | 400 | 400 | Ф3240 | |
Competitive Advantage:
1. Adopted frequency-conversion stepless-speed control technology.The positioner can be used for welding in different speed inaccordance to welding speed.For ellipsoidal workpiece the welding program can be set in different cells for welding technology request.
2. Its design is excellent with high running precision,little inertia,good stability.
3. It can be used together with TIG or MIG/MAG welding machine,plasma cutting machine for combined usage.
