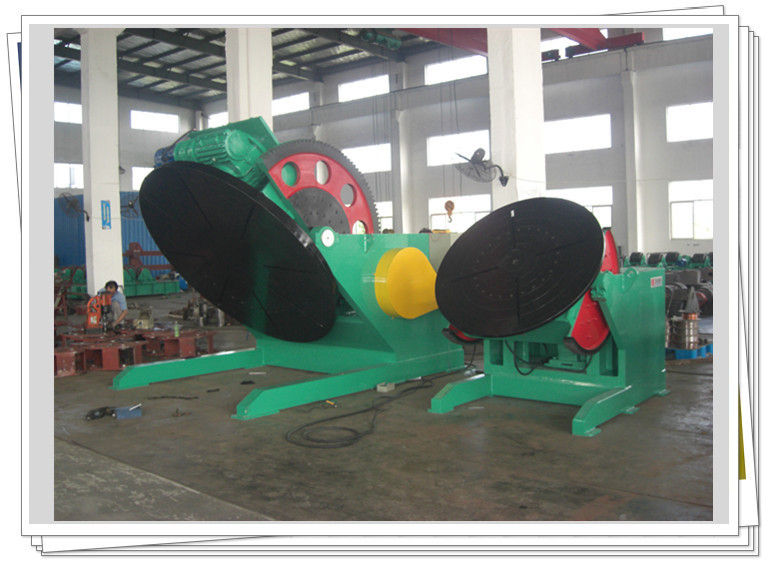

3000kg Rotary Tilting Welding Turning Table With VFD Speed Control

3000kg Rotary Tilting Welding Turning Table VFD Speed Control

Brief introduction:

Via work table tilting & unlimited freely rotating at each tilt angle, position the job to proper working position, in convenience of welder work.

Feature of welding turning table:
1. welding turning table is mainly composed of worktable rotating unit and tilting unit and electric control system .
2. It has powered tilting and rotating, making the work-piece at ideal position .
3. Worktable rotation is controlled by step-less frequency conversion to achieve a best welding speed .
4. Rotate unit is driven by motor. It has a precise speed-adjusting and reliable position.
5. Remote control box can realize the remote operation of work bench, also can connect with operating machines to realize linkage operation.
6. Set aside interface to realize linkage work with manipulator and hanging automatic welding machine achieve automatic welding center .
7. Used to pressure vessel, metallurgy, electrical power, chemical industry, mechanical and metal structure .

Technical parameters:

If you do not see anything that match your requirement, pls contact with us to discuss your needs further.

Remark:
1.You can choose Fixed type or Elevating type .
2. Controlled is remote-control box, optional is foot switch;
3.Beacause of the offset from center and gravity center ,for the longer and more offset from gravity center workpiece, large model should be chosen. We would be pleasure to make solution for you if needed.


Welding turning table description:

• With worktable lifting, tilting and rotating,the welding turning table is mainly used to place the workpiece in the best position for welding and assembling.
• It can be used for various automatic or manual welding, butt welding or face welding of pipe, as well as welding of shafts, discs, barrel, etc.
• The welding turning table has the advantages of compact volume, good appearance, light weight and easy operation.
• The welding turning table series can divide into side tilting type , head to tail rotary type, headstock & tailstock lifting rotary type, headstock & tailstock tilting type, double rotary type positioner.
• The turning table can work with welding column & boom to realize the automatic special purpose welding center.
• As robot peripherals, it can also work with robot to realize automatic welding .
• We can design and customize the positioners according the customers workpiece and welding procedure.
