Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiation
Packaging Details:	Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in container.
Delivery Time:	15 working days after received your payment
Payment Terms:	30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100% irrevocable LC at sight
Supply Ability:	30sets per month

Contact Now

Detailed Product Description

Product Name:	Height Adjusting Automated Pipe Welding Positioners	Application:	Pipe Welding
Type:	Self Adjustable	T Slot No.:	8
Revolve Speed Control:	Variable Frequency Speed Control	Tilting Speed:	Constant
Work-table Shape:	Round Or Custom	Special Design:	Available
Loading:	500kg	Lifting Adjustable:	NO
High Light:	pipe welding positioners , weld positioner

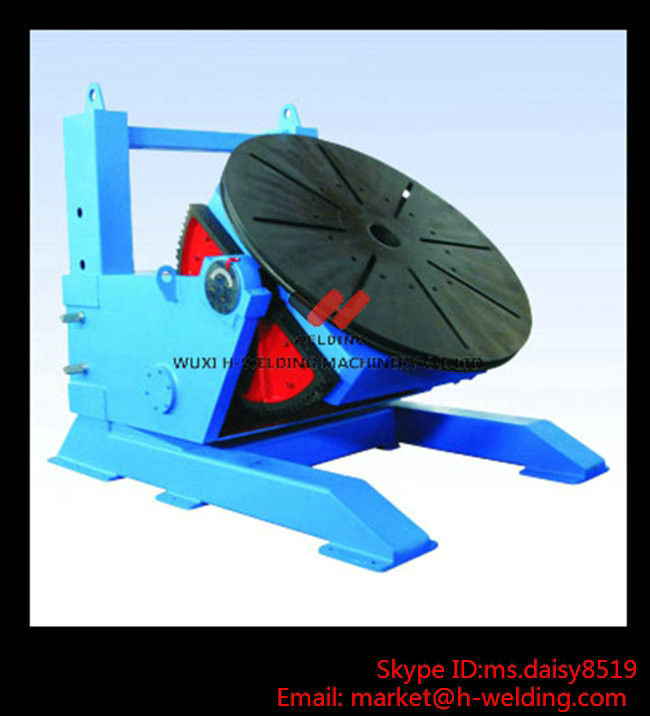

Height Adjusting Automated Pipe Welding Positioners Turntable For Vessel Loading And Machining

Specifications:

Model		SHB10	SHB20	SHB40	SHB60	SHB80	SHB100
Rated loading kg		1000	2000	4000	6000	8000	100000
Max.Eccentricity distance mm		150	150	150	150	200	200
Max gravity center distance mm		350	350	350	350	400	400
Work-table dia.mm		900	1200	1400	1500	1600	1800
Flip Angle		0～135°	0～135°	0～120°	0～120°	0～120°	0～120°
Revolve speed rpm		0.12～1.2	0.05～0.5	0.05～0.5	0.05～0.5	0.05～0.5	0.05～0.5
Tilt speed rpm		0.29	0.25	0.2	0.2	0.15	0.15
Revote driving power kw		1.1	1.1	2.2	2.2	2.2	3
Tilting driving power kw		1.1	1.5	2.2	3	4	4
Out size	A mm	1500	1780	2140	2760	3000	33330
	B mm	1210	1320	1500	1630	1850	2020
	C mm	1670	1800	2160	2600	2850	3140
	E mm	1100～1700 (p=150)	1245～1845 (p=150)	1350～1950 (p=150)	1630～2430 (p=200)	1790～2670 (p=220)	1970～2930 (p=240)
	F mm	775	1035	1360	1320	1630	1800
Rotation speed VPD controller

Description:

This series roller-bed features is auxiliary equipment for automatic welding.
By proper adjustment, it can make work-piece at optimum welding position, attaining purpose of reducing labor intensity, improving, welding speed, guaranteeing welding quality.

Applications:

Altitude height not more than 1000m;
Air temperature should not be out of the range: 0℃ ～ 40℃;
Air relative humidity: Maximum average relative humidity is 90% when day average temperature is not more than 25℃;

Competitive Advantage:

The equipment should be installed in the place without industry gas, steam, salt fog and chemistry aggradations and other harmful gas surrounding.
Also the equipment is far from the acutely shaking and bumping place.
