Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiation
Packaging Details:	Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in container.
Delivery Time:	15 working days after received your payment
Payment Terms:	30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100% irrevocable LC at sight
Supply Ability:	30sets per month

Contact Now

Detailed Product Description

Product Name:	Tank / Vessel Pipe Automatic Welding Positioners	Application:	Vessel Welding
Type:	Self Adjustable	T Slot No.:	8
Revolve Speed Control:	VFD	Tilting Speed:	Constant
Work-table Shape:	Round Or Custom	Special Design:	Available
Loading:	100kg	Lifting Adjustable:	NO
High Light:	pipe welding positioners , welding positioner turntable

Tank / Vessel Pipe Automatic Welding Positioners , 100 KG Loading VFD Control Self Adjustable With Foot Switch

Specifications:

No.	Item
1	Model	ZHB-03	ZHB-06	ZHB-12	ZHB-30	ZHB-50	ZHB-100
2	Rated load (kg)	300	600	1200	3000	5000	10000
3	Max eccentric distance (mm)	100	150	200	200	200	200
4	Max distance of the gravity center (mm)	150	200	250	300	300	400
5	Worktable φ D (mm)	600	1000	1200	1400	1500	1800
6	Tilting angle(°)	0-90	0-90	0-120	0-120	0-120	0-120
7	Rotating speed (rpm)	0.15-1.5	0.11-1.1	0.11-1.1	0.11-1.1	0.05-0.5	0.03-0.3
	Speed control	VFD for rotation speed
8	Tilting speed (rpm)	manual	1.1	0.4	0.23	0.2	0.14
9	Rotating motor power(kW)	0.18	0.55	0.75	1.5	2.2	3
10	Tilting motor power(kW)	/	0.75	1.5	2.2	3	4
11	Worktable T slot qty	4	4	6	6	6	6

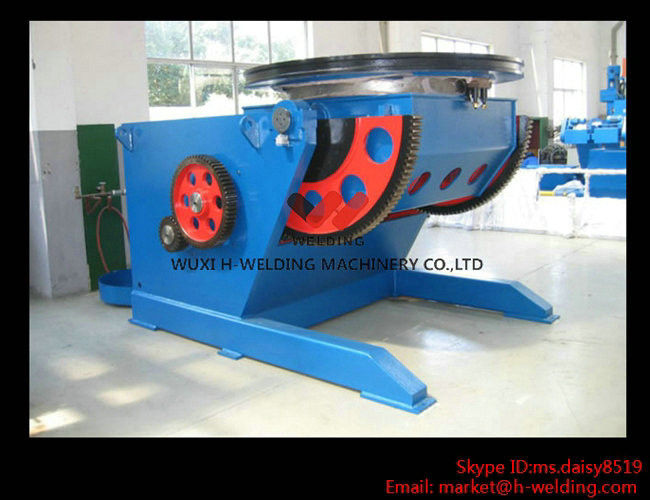

Tank / Vessel Auto Welding Positioners VFD Control Self Adjustable Table With Foot Switch 0

Description:

This welding equipment is the special unit designed according to the requirement of user’s welding craft.
It has powered tilting and revolves, making the work-piece at ideal position.

Applications:
