Product Details:
Payment & Shipping Terms:
|
| Product Name: | 10000 Kg Standard Pipe Welding Turntable Positioner | Application: | Pressure Vessels |
|---|---|---|---|
| Type: | Self Adjustable | T Slot No.: | 8 |
| Revolve Speed Control: | VFD | Tilting Speed: | Constant |
| Work-table Shape: | Round Or Custom | Special Design: | Available |
| Loading: | 10000kg | Lifting Adjustable: | NO |
| High Light: | weld positioner,welding positioner turntable |
||

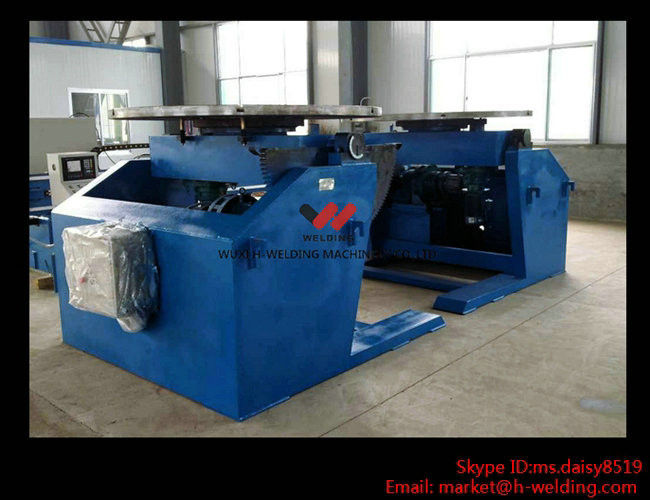

10000 Kg Standard pipe Welding Turntable Positioner For Petro - Chemical Industries Using
Specifications:
|
No. |
Item |
||||||
|
1 |
Model |
ZHB-03 |
ZHB-06 |
ZHB-12 |
ZHB-30 |
ZHB-50 |
ZHB-100 |
|
2 |
Rated load (kg) |
300 |
600 |
1200 |
3000 |
5000 |
10000 |
|
3 |
Max eccentric distance (mm) |
100 |
150 |
200 |
200 |
200 |
200 |
|
4 |
Max distance of the gravity center (mm) |
150 |
200 |
250 |
300 |
300 |
400 |
|
5 |
Worktable φ D (mm) |
600 |
1000 |
1200 |
1400 |
1500 |
1800 |
|
6 |
Tilting angle(°) |
0-90 |
0-90 |
0-120 |
0-120 |
0-120 |
0-120 |
|
7 |
Rotating speed (rpm) |
0.15-1.5 |
0.11-1.1 |
0.11-1.1 |
0.11-1.1 |
0.05-0.5 |
0.03-0.3 |
|
|
Speed control |
VFD for rotation speed |
|||||
|
8 |
Tilting speed (rpm) |
manual |
1.1 |
0.4 |
0.23 |
0.2 |
0.14 |
|
9 |
Rotating motor power(kW) |
0.18 |
0.55 |
0.75 |
1.5 |
2.2 |
3 |
|
10 |
Tilting motor power(kW) |
/ |
0.75 |
1.5 |
2.2 |
3 |
4 |
|
11 |
Worktable T slot qty |
4 |
4 |
6 |
6 |
6 |
6 |
Description:
Applications:
Competitive Advantage:
