Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiation
Packaging Details:	Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in container.
Delivery Time:	15 working days after received your payment
Payment Terms:	30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100% irrevocable LC at sight
Supply Ability:	30sets per month

Contact Now

Detailed Product Description

Product Name:	15Tons Pipe Vessel Welding Positioner	Application:	Pressure Vessels
Type:	Self Adjustable	T Slot No.:	8
Revolve Speed Control:	VFD	Tilting Speed:	Constant
Work-table Shape:	Round Or Custom	Special Design:	Available
Loading:	15000kg	Lifting Adjustable:	NO
High Light:	pipe welding positioners , welding positioner turntable

15Tons Pipe Vessel Welding Positioner High Frequency With Working Table / Pedestal Schneider Electric

Specifications:

No.	Item
1	Model	ZHB-03	ZHB-06	ZHB-12	ZHB-30	ZHB-50	ZHB-100
2	Rated load (kg)	300	600	1200	3000	5000	10000
3	Max eccentric distance (mm)	100	150	200	200	200	200
4	Max distance of the gravity center (mm)	150	200	250	300	300	400
5	Worktable φ D (mm)	600	1000	1200	1400	1500	1800
6	Tilting angle(°)	0-90	0-90	0-120	0-120	0-120	0-120
7	Rotating speed (rpm)	0.15-1.5	0.11-1.1	0.11-1.1	0.11-1.1	0.05-0.5	0.03-0.3
	Speed control	VFD for rotation speed
8	Tilting speed (rpm)	manual	1.1	0.4	0.23	0.2	0.14
9	Rotating motor power(kW)	0.18	0.55	0.75	1.5	2.2	3
10	Tilting motor power(kW)	/	0.75	1.5	2.2	3	4
11	Worktable T slot qty	4	4	6	6	6	6

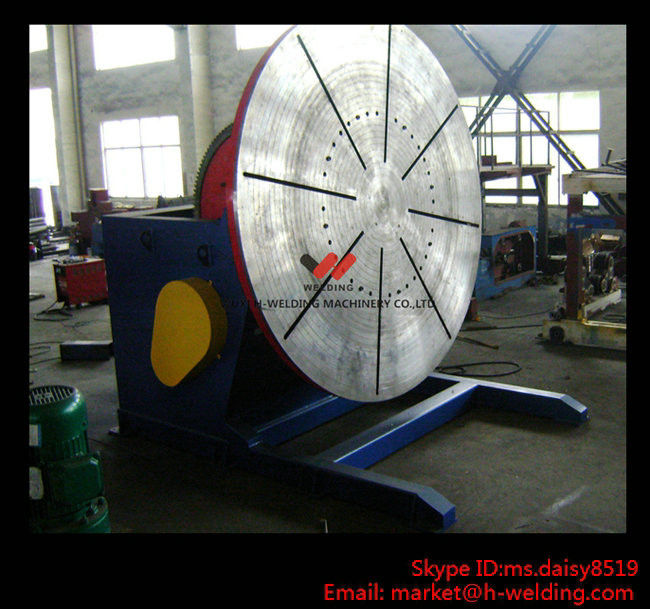

High Frequency welding Turning Table With Working Table / Pedestal Schneider Electric 0

Description:

The revolving worktable installed on the revolve base;
and the conducting unit installed on the forward of it, the half-circle gears are installed on the side; and revolving reducer and motor are installed in the middle.

Applications:

Any heavy cylindrical job
Used to weld,polish and assemble the cylinder-shells,and to line the shells with rubber.
It can be widely applied to the oil industry, press vessel field, wind power production line, pipe line production, and many other round work pieces.
