co2 gas welding machine
|Name||Inverter CO₂ gas shield welding machine|

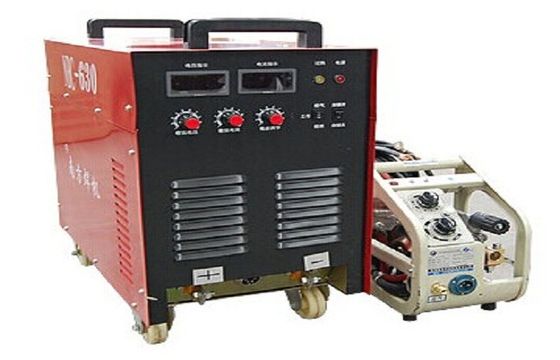

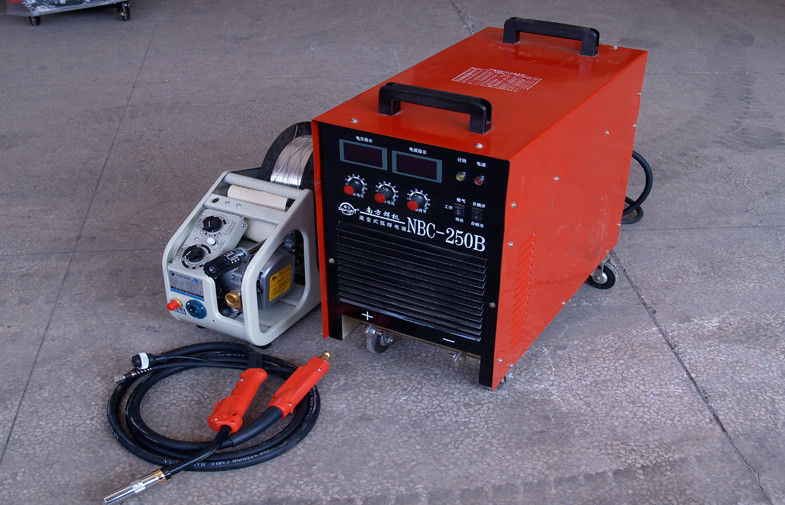

Inverter CO₂ gas protective welding machine
|Application||Particularly suitable for high speed automatic welding|
Welding voltage adjustment range are widened
Welded seams are smooth.
protection for over current,over voltage and over heat.
1 Unique electric reactor-based wave control technique, to widen practicable regulating rang for welding voltage,especially applicable for high-speed automatic welding.
2, The adaptable arc obviously reduces the splash and the welding seams are well formed with high quality.
3, It is also designed with timely protection for over current,over voltage and over heat.
|Rated Welding current (A)||250||350||500||630|
|Rated input voltage (V)||3 P, 380V ,60Hz|
|Rated input capacity (KVA)||10.5||14.5||18||36|
|Welding current range (A)||40-250||50-350||60-400||60-630|
|Rated duty cycle (%)||60%|
|Welding wire diameter (mm)||Φ0.8, Φ1.0||Φ1.0, Φ1.2||Φ1.0, Φ1.2||Φ1.2, Φ1.6|
|Max flow of CO₂ (L/min)||25|
|Overall dimension (mm)||550x330x580||630x330x590||630x330x590||720x370x680|
