| Applications: | Automatic Welding And Cutting | Control: | VFD |
|---|---|---|---|
| Product Name: | Welding Positioner | Rotating Angle: | 360° |
| Table Diameter: | 2000mm | Type: | Fixed Or Elevating |
| Material: | Q235 | Tilting Angle: | 0-90° |
| High Light: | pipe welding positioners,welding positioner turntable |
||

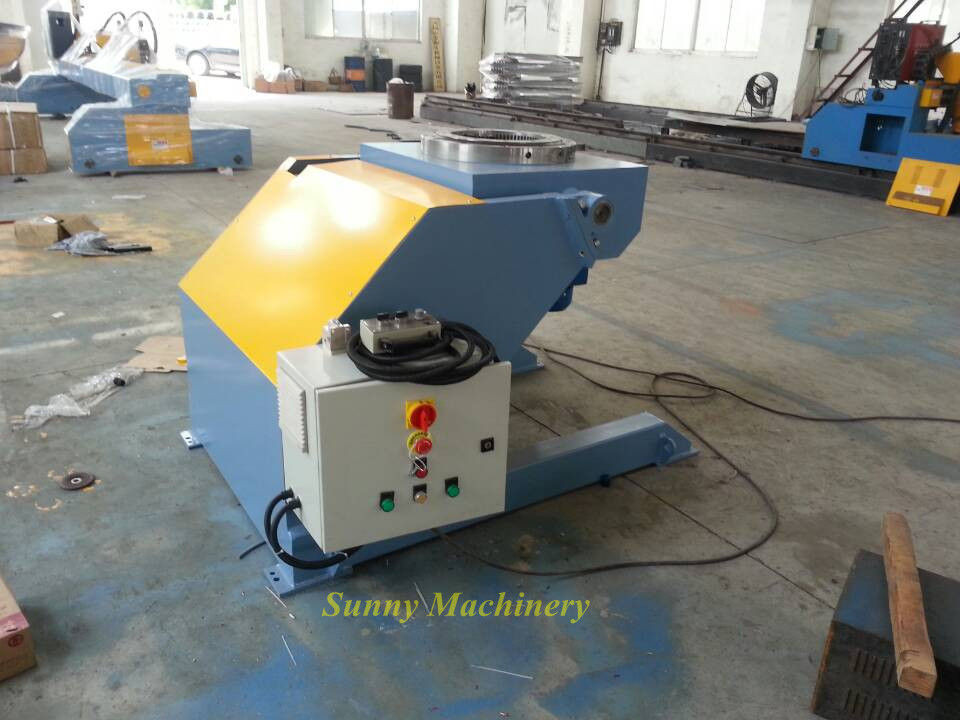

Small Automatic Welding Positioner For Pipe Welding / 1200mm Table Diameter
Kindly Noted:
1. Model from BH 0.1-BH-50 ,other model please contact us.
2.Welding Positioner can tilting from 0 to 120°, rotating 360° by VFD control.
3. Voltage standard is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4. Controlled is remote-control box, optional foot switch
5. If customer need more special requirements ,we’ll study with our engineer.
6. Color of the machine is according to the customers.
Description:
Welding Positioner is a kind of our advanced welding positioner equipment, which is be researched and
manufactured absorbing domestic and international advanced positioner equipment.The worktable is tilting
by motor, accurate and reliable positioning; it makes the work piece in perfect position for welding. The
worktable adopts AC frequency conversion speed, so large range of variable speed and high precision.
The machine can assort all kinds of auto welding or manual welding, improving welding quality, lessening
welding labor and improve productivity.
Applications:
Welding Positioner can be used at automatic welding or manual welding, such as pipe horizontal welding, tube end welding, axle, tray and barrel, it can be wildly used in the pressure vessels equipment, metallurgy, electric power, chemical machine etc industry.
Specifications:
|
Model |
Rated load Cap tons |
Power kw |
Max Gravity height mm |
Max centroid Eccentricity mm |
Table |
Max Rotation Ф@ 90degree |
Tilt Angle (degree) |
Dimensions |
Weight tons |
|||
|
Rotation |
Tilt |
Speed(rpm) |
Diameter ФD |
L×W×H(mm) |
||||||||
|
Rotation |
Tilt (constant) |
|||||||||||
|
HBJ-1 |
0.1 |
0.06 |
man. |
150 |
100 |
0.40~4.0 |
man. |
400 |
600 |
0~90 |
560×400×420 |
0.2 |
|
HBJ-3 |
0.3 |
0.37 |
man. |
200 |
150 |
0.10~1.0 |
man. |
300 |
800 |
0~90 |
930×660×720 |
0.3 |
|
HBJ-6 |
0.6 |
0.75 |
0.75 |
200 |
150 |
0.10~1.0 |
1.1 |
1000 |
1500 |
0~90 |
1200×900×850 |
0.7 |
|
HBJ-10 |
1 |
1.1 |
1.5 |
250 |
200 |
0.05~05 |
0.67 |
1200 |
2000 |
0~120 |
1400×1200× 1200 |
1 |
|
HBJ-50 |
5 |
2.2 |
3 |
300 |
200 |
0.05~05 |
0.14 |
1500 |
2500 |
0~120 |
2200×1500× 1450 |
3.7 |
|
HBJ-80 |
8 |
2.2 |
4 |
400 |
200 |
0.02~0.2 |
0.14 |
2000 |
3200 |
0~120 |
2700×2000× 1850 |
4.5 |
|
HBJ-100 |
10 |
3 |
5.5 |
400 |
200 |
0.02~0.2 |
0.14 |
2000 |
3200 |
0~120 |
2700×2000× 1850 |
5.8 |
|
HBJ-150 |
15 |
3 |
5.5 |
450 |
200 |
0.015~0.15 |
0.1 |
2200 |
3200 |
0~120 |
3300×2230× 2000 |
8 |
|
HBJ-200 |
20 |
4 |
7.5 |
450 |
200 |
0.015~0.15 |
0.1 |
2300 |
3200 |
0~120 |
3300×2230× 2000 |
11 |
Competitive Advantage:
Brand using:
﹡Inverter is made in USA Danfoss
﹡Motor Brand is UK Invertek
﹡Element is made by Schneider /Siemens/Fuji
﹡Reducer is made by Kaibo/Guomao
﹡Bearing is made by NTN / Harbin
Optional:
1. Foot switch
2. Three Jaws Self-Clamp Chuck
Installation and commissioning:
If customer need installation and commissioning,we’ll send 3 workers to customer’s factory ,including one machinery worker,one electrician and one translator.But customer should pay the cost of installation and commissioning.
Why always Sunny?
360°guarantee makes ordering risk free.
20 years welding machine manufacture experiences.
one-stop service of welding.
OEM service.
Quickly feedback for your problems.
