Head Tailer Valve Pipe Welding Positioner CO2 Gas Shield Welding

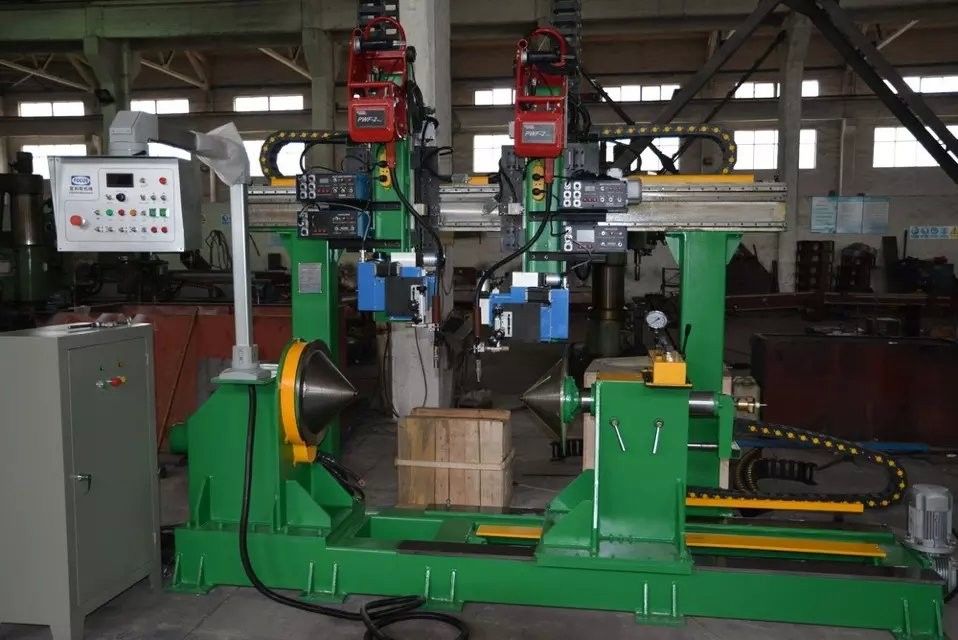

Large Image : Head Tailer Valve Pipe Welding Positioner CO2 Gas Shield Welding

Product Details:

Place of Origin:	China
Brand Name:	TMB
Certification:	ISO/CE
Model Number:	HT10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Bubble papers
Delivery Time:	45 daya
Payment Terms:	T/T
Supply Ability:	10 Sets/month

Contact Now

Detailed Product Description

Max Loading:	1000 Kg	Rolling Speed:	100-1000 Mm/min
Rolling Motor:	1.5 Kw	Welding Type:	CO2 Gas Shield
Welding Power:	Lincoln 500A	Tailer Moving:	1000 Mm
High Light:	automatic welding positioner , rotary welding positioners

Head Tailer Valve Pipe Welding Positioner CO2 Gas Shield Welding

    This machine is special for valve circle seam or hardfacing surface. The tailer may move on the bed according to the valve length .
   We may use CO2 welding type with oscillate adjust the welding seam width. The welding gun may

move on the beam by motor , the moving railer is linear guider .
This type machine often be produced according to customer's special requirement. Buyer must

supply the workpiece basic technical dates to my factory .Then we will design for you and produce.

Main Technical Parameters(Standard)
We will produce this type machine according to customer's requirements . So pleasse tell me

your workpiece size .

Head & Tail Stock	Loading Cap.(Tons)	Table Diameter (mm)	Rotation Center Height (mm)	Rotation Speed (rpm)	Power (kw)	Max Centroid Eccentricity (mm)	Weight (Tons)
HT0.5	0.5	600	600	0.15-1.5	0.75	300	0.9
HT1	1	800	800	0.15-1.5	0.75	200	1.5
HT2	2	800	800	0.15-1.5	1.1	150	1.8
HT3	3	800	800	0.15-1.5	1.5	150	3.0
HT5	5	800	800	0.1-1	1.5	150	4.5
HT10	10	1000	1000	0.1-1	2.2	100	8.0
HT15	15	1000	1000	0.1-1	2.2	100	10.0
HT20	20	1500	1200	0.08-0.8	3	100	14.0
HT30	30	1500	1200	0.05-0.5	4	100	20.0
HT50	50	2000	1500	0.04-0.4	5.5	100	25.0
HT100	100	2500	1700	0.02-0.2	7.5	100	35.0

Product Application:

With the working bench lifting up or down, turning and tilting, the work piece stays in the best

position for being welded or assembled.

Product Advantage:

1. The VFD drive brand as Schneider ,France brand.
2. The motor brand as Siemens , Germany brand
3. Lower voltage electrical components brand as Schneider , France brand
4. The machine by shot blasting to remove steel rust

Competitive Advantage:

1.Convenient, high efficiency
2.high quality
3.Reasonable price
4.good service
