Wiggler Left Right Moving Make Seam Head Tailer Welding Machine Positioner

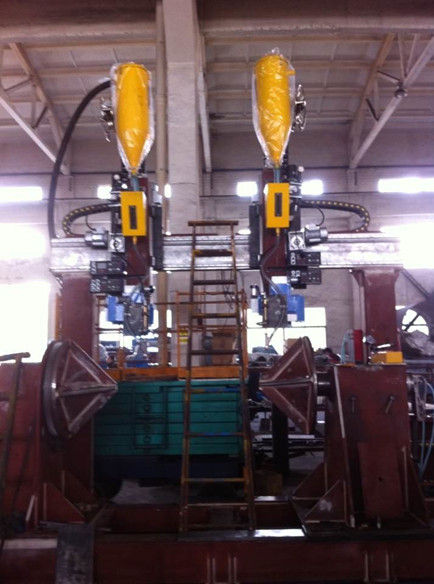

Large Image : Wiggler Left Right Moving Make Seam Head Tailer Welding Machine Positioner

Product Details:

Place of Origin:	China
Brand Name:	TMB
Certification:	ISO/CE
Model Number:	HT10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Bubble papers
Delivery Time:	45 daya
Payment Terms:	T/T
Supply Ability:	10 Sets/month

Contact Now

Detailed Product Description

Workpiece Length:	500-1500 Mm	Rolling Speed:	100-1000 Mm/min
Rolling Motor:	1.5 Kw	Welding Type:	DC-1000
Welding Power:	Lincoln USA Brand	Tailer Moving:	1000 Mm
Welding Head:	Lincoln USA Brand
High Light:	automatic welding positioner , Pipe Welding Positioner

Wiggler Left Right Moving Make Seam Head Tailer Welding Machine Positioner

   Wiggler may move left and right , the max swing distance is 100 mm , the device is produced by high quality guider and motor.
This machine use Lincoln Welding power DC-1500 welding machine with hight efficience Wiggler
adjust the welding seam width. The welding trolley may move on the beam by motor , the moving railer is linear guider .
   This machine is special for valve circle seam or hardfacing surface. The tailer may
move on the bed according to the valve length .
This type machine often be produced according to customer's special requirement. Buyer must supply
the workpiece basic technical dates to my factory .Then we will design for you and produce.

Main Technical Parameters(Standard)
We will produce this type machine according to customer's requirements .it means :you must tell me your workpiece size ,and then ,we will design for you and give you the best price.

Head & Tail Stock	Loading Cap.(Tons)	Table Diameter (mm)	Rotation Center Height (mm)	Rotation Speed (rpm)	Power (kw)	Max Centroid Eccentricity (mm)	Weight (Tons)
HT0.5	0.5	600	600	0.15-1.5	0.75	300	0.9
HT1	1	800	800	0.15-1.5	0.75	200	1.5
HT2	2	800	800	0.15-1.5	1.1	150	1.8
HT3	3	800	800	0.15-1.5	1.5	150	3.0
HT5	5	800	800	0.1-1	1.5	150	4.5
HT10	10	1000	1000	0.1-1	2.2	100	8.0
HT15	15	1000	1000	0.1-1	2.2	100	10.0
HT20	20	1500	1200	0.08-0.8	3	100	14.0
HT30	30	1500	1200	0.05-0.5	4	100	20.0
HT50	50	2000	1500	0.04-0.4	5.5	100	25.0
HT100	100	2500	1700	0.02-0.2	7.5	100	35.0

Product Application:

With the working bench lifting up or down, turning and tilting, the work piece stays in the best

position for being welded or assembled.

Product Advantage:

1. The VFD drive brand as Schneider ,France brand.
2. The motor brand as Siemens , Germany brand
3. Lower voltage electrical components brand as Schneider , France brand
4. The machine by shot blasting to remove steel rust

Competitive Advantage:

1.Convenient, high efficiency
2.high quality
3.Reasonable price
4.good service
