Product Details:
Payment & Shipping Terms:
|
| Max Loading: | 5000 Kg | Rolling Speed: | NO |
|---|---|---|---|
| Rolling Motor: | NO | Tilting Speed: | 1.5 Rpm |
| Tilting Motor: | 3kw | Lifting: | Synchronous Lifting |
| Lifting Motor: | 2.2 Kw X2 | Lifting Speed: | 500 Mm/min |
| High Light: | Pipe Welding Positioner,rotary welding positioners |
||

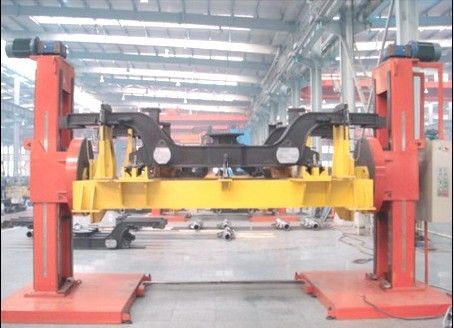

Synchronous Motor Drive Lifting Double Column Weld Positioner DWP5 Tons Power Tilting
Double column elevating welding positioner is mainly used for solving problems of high position,also can weld seam provide low installation position. make the workpiece clamp and fix more easily .
The synchronous elevating type mainly use chain with 2 motors. The working table may be lift up and down . The working table may tilt by motor. The revolving device oftern use 1 motor drive two reducers .
This type machine often be produced according to customer's special requirement. Buyer must supply the workpiece basic technical dates to my factory .Then we will design for you and produce.
Double Column Elevating Welding Positioner
DWP | Loading | Tilting | Elevating | Table | ||||||||
Speed | Max | Motor | Speed | Lifting | Up/down | Motor | Max | Rotation | Motor | Table | ||
DWP1 | 1 | 2 | 200 | 2.2 | 2 | 800-1600 | 800 | 2x1.1 | 200 | N/A | N/A | N/A |
DWP3 | 3 | 1.8 | 200 | 2.2 | 1.8 | 800-1600 | 800 | 2x2.2 | 300 | N/A | N/A | N/A |
DWP5 | 5 | 1.5 | 200 | 3 | 1.5 | 1000-2000 | 1000 | 2x3.0 | 300 | N/A | N/A | N/A |
DWP8 | 8 | 1.5 | 200 | 4 | 1.5 | 1000-2000 | 1000 | 2x4.0 | 300 | N/A | N/A | N/A |
DWP10 | 10 | 1 | 300 | 5.5 | 1 | 2000-3000 | 1000 | 2x4.0 | 150 | 0.05-0.5 | 5.5 | 100 |
DWP20 | 20 | 1 | 300 | 11 | 1 | 2000-3000 | 1000 | 2x7.5 | 150 | 0.05-0.5 | 11 | 100 |
DWP30 | 30 | 0.5 | 450 | 15 | 0.5 | 2000-3500 | 1500 | 2x11 | 200 | 0.05-0.5 | 15 | 150 |
DWP50 | 50 | 0.5 | 450 | 18.5 | 0.5 | 2000-3500 | 1500 | 2x22 | 300 | 0.05-0.5 | 18.5 | 150 |
DWP80 | 80 | 0.2 | 600 | 30 | 0.2 | 2500-4000 | 1500 | 2x30 | 350 | 0.02-0.2 | 30 | 250 |
1. The VFD drive brand as Schneider ,France brand.
2. The motor brand as Siemens , Germany brand
3. Lower voltage electrical components brand as Schneider , France brand
4. The machine by shot blasting to remove steel rust
Competitive Advantage:
1.Convenient, high efficiency
2.high quality
3.Reasonable price
4.good service
DWP5 / Elevating / Tilting /
