Two Big Semicircle Gears 5 Tons Welding Positioner VFD Change Rolling Speed

China Two Big Semicircle Gears 5 Tons Welding  Positioner VFD Change Rolling Speed supplier
Two Big Semicircle Gears 5 Tons Welding  Positioner VFD Change Rolling Speed supplier Two Big Semicircle Gears 5 Tons Welding  Positioner VFD Change Rolling Speed supplier

Large Image :  Two Big Semicircle Gears 5 Tons Welding Positioner VFD Change Rolling Speed

Product Details:

Place of Origin: China
Brand Name: TMP
Certification: CE
Model Number: TP5000

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: discuss in letter
Packaging Details: With bubble papaer
Delivery Time: 15--25days
Payment Terms: TT,L/C
Supply Ability: 30 sets/month
Contact Now
Detailed Product Description
Max Loading: 5000 Kg Working Table Diameter: 1600 Mm
Revolve Speed: 0.07-0.7 Rpm Tilting Speed: 0.2 Rpm
Tilting Angle: 120 Degree Revolve Motor: 1.5 Kw
Tilting Motor: 3 Kw

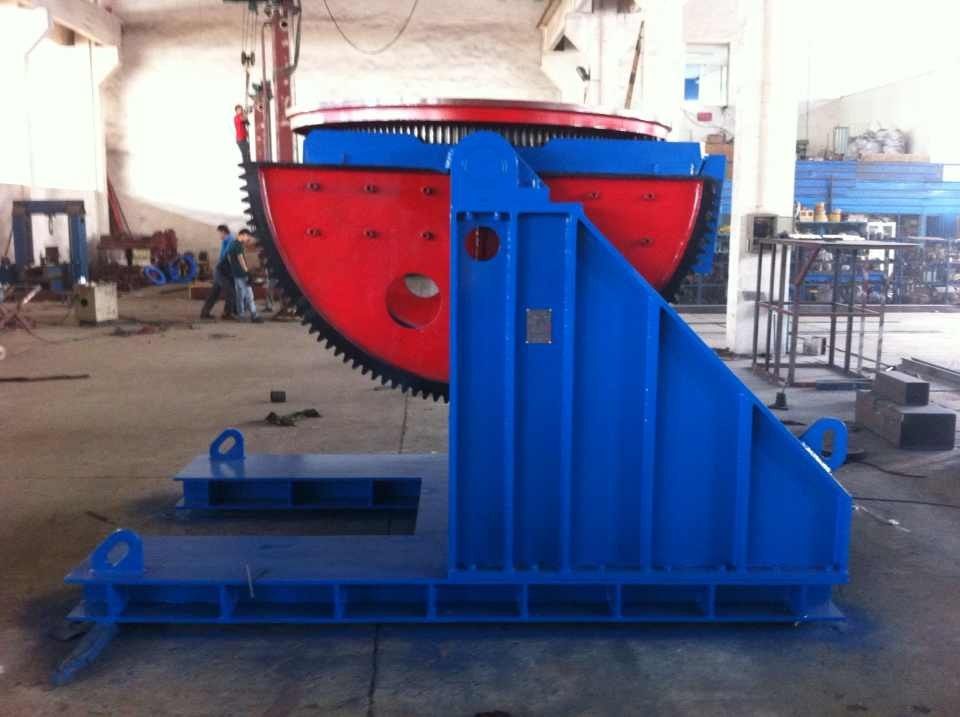

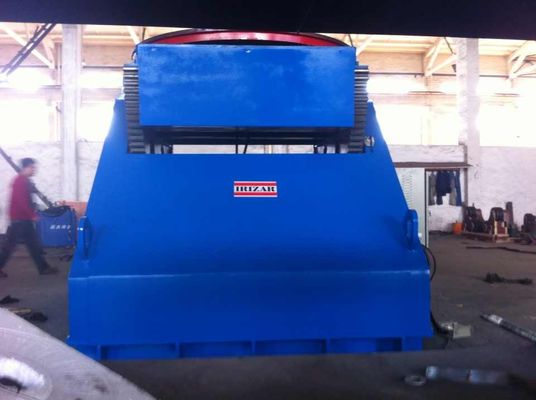

Two Big Semicircle Gears​ TP5000 Kg Positioner working-table revolve and tilting  by motor

    According to the working state machine displacements, our company divided it into the following several categories: fixed tilting (TP), the head and tail lifting type (HTLP). According to customers' special needs, sometimes tail frame can also make portable.

    Welding Positioner is mainly used for transformations of workpiece position, Modification machine is mainly used for transformations of workpiece position, so that the workpiece is in the best position to achieve the welding assembling or position the work required, in order to improve the work efficiency.

     Welding Positioner is special welding auxiliary equipment, suitable for welding deformation of rotary work to get ideal processing position and welding speed. Modification machine can use with operating machines, welding machine to compose the automatic welding center, which also can be used for manual operation of workpiece displacements. Workbench rotation adoptedinverter stepless speed regulation, and the speed precision is high. Remote control box can realize the remote operation of workbench, also can connect with operating machines, welding machine system to realize linkage operation.


Product Application:

With the working bench going up or going down, turning and manipulating, the work piece stays in the best position for being welded or assembled.

Product Advantage:
  1. Convenient, high efficiency
  2. high quality
  3. Reasonable price
  4. good service


Competitive Advantage:


  1. Electric control system composed of electric cabinet and manual control panel making it easy to operate.
  2. Equipped with slewing bearing which helps increase the loading capacity and makes the rotation smooth.
  3. Worktable is manufactured with six M30T bolt grooves used to clamp and position the work pieces.
Specification:

Type
Max Loading Kg

Table Diameter  mm

Revolve  speedrpm

Tilting Angle °

Tilting  Power KW

Revolving  Power KW

TP05
50
300
0---3
0---90
By hand
0.12
TP1
100
400
0---3
0---90
By hand
0.2
TP3
300
600
0---2
0---90
By hand
0.37
TP6
600
800
0---1
0---120
0.55
0.75
TP12
1200
1000
0---1
0---120
1.1
1.1
TP20
2000
1200
0---0.9
0---120
1.5
1.5
TP30
3000
1400
0---0.8
0---120
2.2
1.5
TP50
5000
1600
0---0.7
0---120
3
2.2
TP100
10000
2000
0---0.6
0---120
7.5
4
TP200
20000
2500
0---0.5
0---120
11
7.5
TP300
30000
3000
0---0.4
0---120
18.5
11
TP500
50000
3000
0---0.4
0---120
22
15
Remote control box line length:10m
The speed adjustment way: frequency conversion
