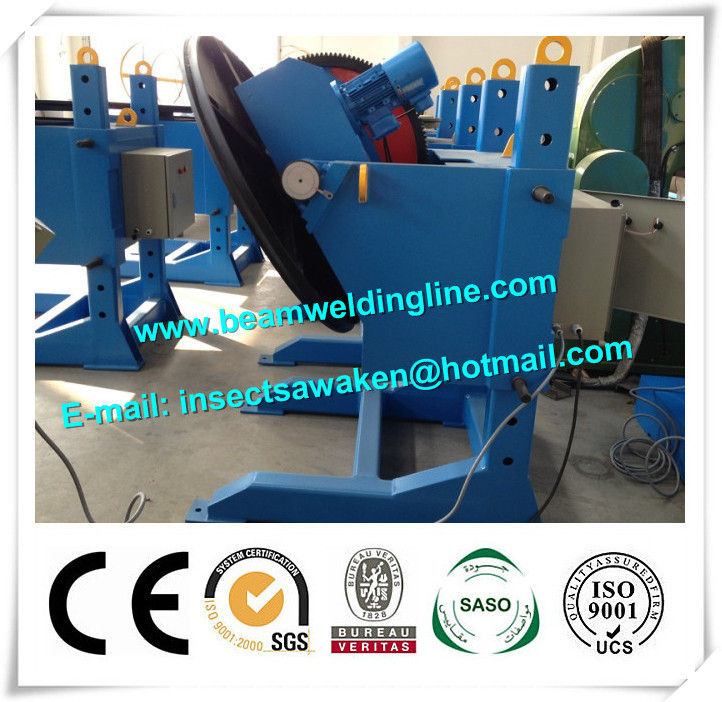

Variable Speed Rotation Pipe Weld Positioner Lift Welding Table
1. Main introduction
● CE approved
● Worktable height: adjustable
● High precision of orientation
● Variable speed rotation and on/ off foot pedal
Welding positioner is mainly composed of worktable revolving unit and tilting unit. By means of worktable elevation, work-piece fixed on the worktable can be placed to ideal position for welding and assembly. Speed of worktable revolving is controlled and continuously with inverter, attaining satisfactory welding speed.
For the reason reason of eccentric and gravity-center-distance, slightly higher model should be selected for longer work-piece and work-pieces of which gravity-center has greater offset. If standard welding positioner can not meet requirement for all work-pieces, be sure to offer us shape, weight and machining technology of work-piece, we can furnish suitable proposal for your choice.
2. Main proposal
|
Type |
HBJ06 |
HBJ10 |
HBJ20 |
|
|
Rated weight bearing(Kg) |
600 |
1000 |
2000 |
|
|
Overturning capacity (rpm) |
0.08-0.8 |
|||
|
Speed of table (rpm) |
0.4 |
0.34 |
0.29 |
|
|
Turning angle (°) |
0-135 |
|||
|
Size of working table (mm) |
800 |
1000 |
1200 |
|
|
Power(KW) |
Turning |
0.37 |
0.75 |
1.1 |
|
Overturning |
0.75 |
0.75 |
1.1 |
|
|
Way of setting |
Frequency conversion step less |
|||
|
Maximum distance of gravity center (mm) |
100 |
200 |
||
|
Maximum eccentric distance(mm) |
150 |
175 |
200 |
|
|
Maximum turning diameter (mm) |
1600-2000 |
1840-2480 |
2200-3400 |
|
3. Structure showing
