Welding Turning Table Pipe Welding Positioners For Heavy Duty Loading , Turning / Revolve Table

Welding Turning Table Pipe Welding Positioners For Heavy Duty Loading , Turning / Revolve Table
Welding Turning Table Pipe Welding Positioners For Heavy Duty Loading , Turning / Revolve Table Welding Turning Table Pipe Welding Positioners For Heavy Duty Loading , Turning / Revolve Table Welding Turning Table Pipe Welding Positioners For Heavy Duty Loading , Turning / Revolve Table

Large Image :  Welding Turning Table Pipe Welding Positioners For Heavy Duty Loading , Turning / Revolve Table

Product Details:
Place of Origin: China
Brand Name: H-WELDING
Certification: Certification of original
Model Number: HZT-10
Detailed Product Description
High Light:

welding positioners

,

pipe welding positioner



Welding Turning Table Pipe Welding Positioners For Heavy Duty Loading , Turning / Revolve Table





Quick Detail:

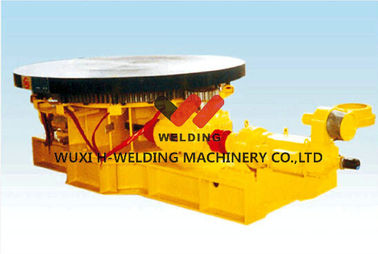

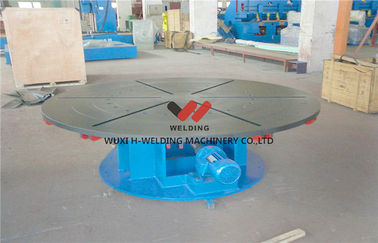

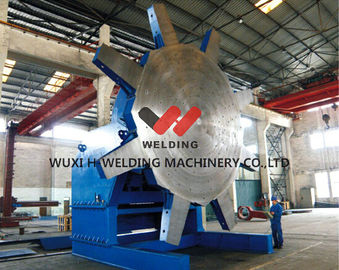

  • Welding turning table which consist of working table and pedestal.
  • Used for heavy duty loading work-piece.
  • Working table can do revolving infinitely which make the tank at ideal position.
  • Can add a chuck in the welding table to fix (clamp) the work-piece well.
  • With T-slots on the table surface for clamping work-piece





Description:



Welding turning table is consisting of worktable revolving mechanism, and electric control system. The work-piece can be reach to the most suitable position through worktable revolving device.

The worktable revolving controlled by step-less frequency conversion to achieve a best welding speed.

Standard type welding turning table can't meet all work-pieces’ processing, please provide your work-piece’s weight, shape and other specification in detail so that we can provide the best solution way for your reference.





Applications:



It used in many industries such as pipe, tank, pressure vessel, boiler, freezing equipment, power station construction, metallurgical, engineering machinery, marine building, and petro-chemical industries etc.



Specifications:



Model

HZT5

HZT10

HZT20

HZT50

HZT100

HZT150

SHB250

Rated loading weight kg (kg)

5000

10000

20000

50000

100000

150000

250000

Revolve speed (rpm)

0.05-1

0.05-1

0.025-0.5

0.025-0.5

0.015-0.3

0.015-0.3

0.01-0.2

Revolve torque (KN.M)

5000

5000

15000

20000

40000

50000

100000

Speed adjustable way

Variable frequency control

Motor power (kw)

1.1

1.1

1.5

2.2

3.5

3.5

5



Drawing:









Competitive advantage:

1. Main electric elements are Siemens/Schneider.
2. VFD rotary speed control, improving the reliability of operation.
3. Steel and rubber roller or PU roller which can ensure a long time using.
4. With lubrication system.
5. Accept testing before delivery.
6. Accepy special design and custom.
