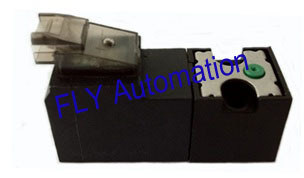

MAV10-23-1-12VDC 24V Mini Three / Two Way Pneumatic Solenoid Valves
10mm,15mm miniature solenoid valve body material PVC life cycle 50million~200million two position three way power consumption less than 1.3W e.g MAV10-23-1-12VDC
Quick Detail:
1.Body Material:Reinforce PVC
2.Body width 10mm,15mm for option
3.Two Position Three Way,Two Position Two Way available
4.Connection in plate type,Manifold base available accessories
5.Long service life cycle 50million to 200million cycle
6.Compact easy and convenient for installation
7.High stability,fast response
8.Various type electricity connect type for option
9.IP65 class Electromagnetic Induction Coil,low consumption less than 1.3W
10.MAV series miniature solenoid valve
Applications:
MAV series miniature solenoid valve used in the industrial of textile,hosiery machine,Fabric Knitting,underwear knitting,Medical equipment,Electronical industrial etc.
MAV series valve can be applicable on machines of Italy Lonati,Matec,Colosib, Sangiacomo, Santoni, CZECH Uniplet,Korea Bother, S-TEC etc
Specifications:
|
ORDERING CODE |
|||||
|
MAV |
10 |
23 |
1 |
C |
DC24V |
|
Type |
Body Width |
Function Type |
Electricity Connect Form |
Exhuasting Type |
Voltage |
|
MAV:Minature Solenoid valve |
10:10mm |
22:Two Position Two Way |
1:Wire Out-leading type |
Blank:Standard Exhuasting |
DC24V:24VDC |
|
2:Vertical Socket Type |
DC12V:12VDC |
||||
|
15:15mm |
23:Two Position Three Way |
3:Flat Socket Type |
C:Direct Exhuasting |
DC6V:6VDC |
|
|
SPECIFICATION |
||||||||
|
Model no |
MAV10-23-1 |
MAV10-23-2 |
MAV10-23-3 |
MAV10-23-4 |
MAV15-23-1 |
MAV15-23-2 |
MAV15-23-3 |
MAV15-23-4 |
|
Position And Way Numbers |
Two Position Three Way |
|||||||
|
Working Medium |
Compressed 40 Micron Filtered Air |
|||||||
|
Body Material |
PVC |
|||||||
|
Working Pressure |
0~0.7MPa |
|||||||
|
Operating Temperature |
-5~50℃ |
|||||||
|
Voltage Tolerance |
±10% |
|||||||
|
Power consumption |
＜1.3W |
|||||||
|
Enclosure |
Dust-Proof |
|||||||
|
Port connecting |
Plate connection type |
|||||||
|
Manual Override |
Not Locked |
|||||||
|
Highest motion Frequency |
20cycle/Sec |
|||||||
|
Life Cycle |
50Million~200Millon |
|||||||
|
Minimum Activate Time |
≤10ms |
|||||||
Dimension(mm):
Accessories:Manifold:
|
MAV10 |
16F |
|
|
Type |
Joint Base No |
|
|
MAV10:For Miniature Solenoid Valve body width 10mm |
16F:For 16PCS valve |
|
|
MAV15:For Miniature Solenoid Valve body width 10mm |
||
