Product Details:
Payment & Shipping Terms:
|
| Product Name: | Best Nr.0200 | Insulation Class: | B/F/H |
|---|---|---|---|
| Normal Voltage: | 24-110-220-230VAC 12-24VDC | Connection Type: | DIN43650A |
| Normal Power: | AC 15VA DC 12W | Internal Diameter: | Φ13.5mm |
| IP: | 65 | Connection Type: | DIN43650A,Fly Leading Wire |
| Highlight: | 24VDC Solenoid Coil |
||

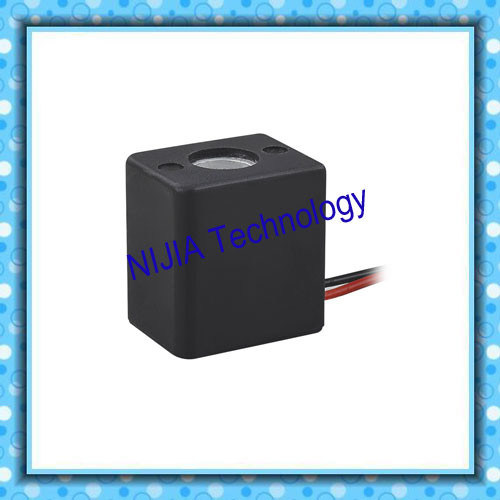

The Herion 0200 type solenoid coils are designed for Norgren series solenoid valves,
Widely used in 1.6 old valve, dust removal equipment, pulse solenoid valves and other pneumatic solenoid valve.This type is flying lead connection way.
The 0200 solenoid coils could be widely used to 2636000 2636065 2637050 2637250 2636200 2630600 8020750 8020850 8020865 models.
For Solenoid Valve 0927 and 0955 series DC12V,DC24V,AC110V,AC220V
For Electric Drain Valve series DC12V,DC24V,AC110V,AC220V
Specifications:
| Product NO. | NJ0200 |
| Product type | Herion 0200 |
| Normal Voltage | AC220V DC24V |
| Normal Power | AC:18VA DC:15W |
| Insulation Class | F , H |
| Connection Type | Fly lead type |
| Applicability | Herion Series solenoid valves |
Resistance voltage : ≥1800V 1MA / MIN
Voltage Range Accuracy : ± 10%
Insulation class : F
Protection: IP65
Temperature rating : B.H
Electricity rate : 100%
Housing material : reinforced nylon 30% flame retardant, high temperature, high moisture resistance performance
Application : Widely used in 1.6 old valve, dust removal equipment, pulse solenoid valves and other pneumatic solenoid valve.
Drawings:
Application
Herion 2627050 solenoid valve:
Dust collector valve DN40
Competitive Advantage:
1. Professional workshops
2. High and stable quality
3. Quick delivery time
4. Good package in order to void the problems in transportation.
5. Best service from the whole company.
