Pneumatic Control Steam Three Way Two Position Valve With Flange

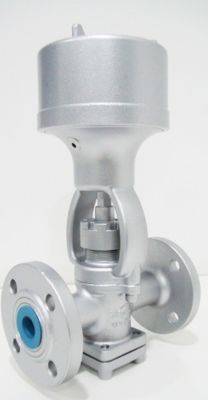

تصویر بزرگ : Pneumatic Control Steam Three Way Two Position Valve With Flange

جزئیات محصول:

Place of Origin:	RUIAN
نام تجاری:	ROSNM
گواهی:	ISO9001

پرداخت:

Minimum Order Quantity:	100SET
قیمت:	negotiable
Packaging Details:	CTNS
Delivery Time:	45days
Payment Terms:	T/T
Supply Ability:	100000SET/1 MONTH

مخاطب

توضیحات محصول جزئیات

برجسته کردن:	Automatic Pneumatic Valve,pneumatic ball valve

DRAG COEFFICIENT CAN BE ACCURATELY ADJUSTED OF 3 WAY 2 POSITION PNEUMATIC VALVE

Quick Detail:

Name	Pneumatic two position valve	Brand Name	ROSNM
Color	As your request	Certificate	ISO9001
Warranty	1 year	Place of Origin	RUIAN

Description:

pneumatic two-place cutting valves is one of the automatic units during industrial production in according with the signal of the meter to open or close flowing agency it can satisfy the requirement with pressure , temperature ,flowing volume ,etc technical parameter. Series of ZSC-PRⅢ pneumatic woe-place cutting valve in our company with small volume sealing and reliability LONG life ease of maintenance and explosion-proof ,etc merits .So it is used widely in self-control and remote system of various industrial productions when closing no permission to leak ,especially suitable for various specifications type vulcanized machine. Product executive standard:HG/T3236-2006 Patent No.:200920219873.6

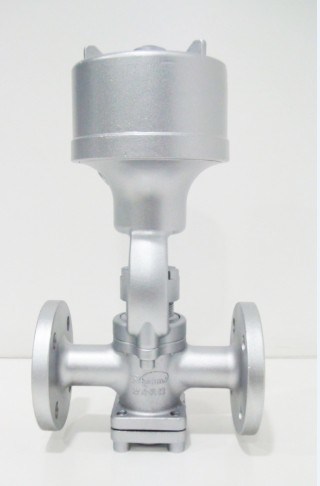

Pneumatic Control Steam Three Way Two Position Valve With Flange 0

Applications:

Used for used widely in self-control and remote system of various industrial productions when closing no permission to leak ,especially suitable for various specifications type vulcanized machine

Specifications

Model						PNEUMATIC TWO-PLACE CUTTING VALVE
Nominal pressure						1.6 4.0MPa
Nominal diameter						15 20 25 32 40 50 80
Signal pressure						0.35MPa
Work temperature						-20~+300℃
Work medium						Nitrogen Liquid Steam gas
	THREE position FLANGE TYPE OVERALL DIMENSIONS
	Nominal pressure	1.6 4.0Mpa
	DN	L	D	SIZE								H1	H2	H	ΦA
				D1	D2		D6	b	f
				D1	D2		D6	b	f	N-Φd
	air-to-open
	15	146	95	70	52		46	14	2	4	14	88	199	287	93
	20	185	115	85	65		58	16	2	4	14	109	263	372	125
	25	185	115	85	65		58	16	2	4	14	109	263	372	125
	32	195	145	110	85		76	18	2	4	18	120	294	414	162
	40	195	145	110	85		76	18	2	4	18	120	294	414	162
	50	220	160	125	100		88	20	2	4	18	131	330	461	203
	AIR-TO-CLOSE
	20	185	115	85	65		58	16	2	4	14	109	321	430	125
	25	185	115	85	65		58	16	2	4	14	109	321	430	125
	32	195	145	110	85		76	18	2	4	18	120	357	477	162
	40	195	145	110	85		76	18	2	4	18	120	357	477	162

TWO position FLANGE TYPE OVERALL DIMENSIONS
Nominal pressure	1.6 4.0Mpa
DN	L	D	SIZE							H1	H2	H	ΦA
			D1	D2	D6	b	f
			D1	D2	D6	b	f	N-Φd
AIR-TO-OPEN
1"/2	98	1"/2								53	199	252	93
15	146	95	70	52	46	14	2	4	14	53	199	252	93
20	185	115	85	65	58	16	2	4	14	65	263	328	125
25	185	115	85	65	58	16	2	4	14	65	263	328	125
32	195	145	110	85	76	18	2	4	18	76	294	370	162
40	195	145	110	85	76	18	2	4	18	76	294	370	162
50	220	160	125	100	88	20	2	4	18	90	330	420	203
65	290	180	145	120	110	22	3	8	18	117	411	528	260
80	310	195	160	135	121	22	3	8	18	127	460	587	280
100	350	230	190	160	15	24	3	8	23	141	501	642	300
125	400	270	220	188	176	28	3	8	25	165	560	725	344
150	480	300	250	218	205	30	3	8	25	188	628	816	374
AIR-TO-CLOSE
20	185	115	85	65	58	16	2	4	14	67	321	388	125
25	185	115	85	65	58	16	2	4	14	67	321	388	125
32	195	145	110	85	76	18	2	4	18	76	357	433	162
40	195	145	110	85	76	18	2	4	18	76	357	433	162

Two, three threaded import overall dimensions
NOMINAL PRESSURE	1.6 4.0Mpa
(SIZE)	ZG	D	L	H1	H2	H	￠A
1"/4 3"/8	1"/4 3"/8	32	85	53	186	239	85
1"/2	1"/2	32	85	53	186	239	85
3"/4	3"/4	38	110	68	252	320	115
1"	1"	45	120	71	260	331	130
11"/4	11"/4	52	145	78	277	355	150
11"/2	11"/2	62	150	83	299	382	176
