Self - aligned Welding positioner rotator Turning Roll with Double Drive 100Ton

China China Concrete Autoclave Online Market certification
China China Concrete Autoclave Online Market certification
The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Albert

Cooperation is very satisfactory and the Company of the past few years, we are very willing to continue long-term cooperation.

—— Dean

I want to say that your products very good. Thank you for all your suggestion, also good after sales service.

—— Mr Abílio Cipriano

I'm Online Chat Now

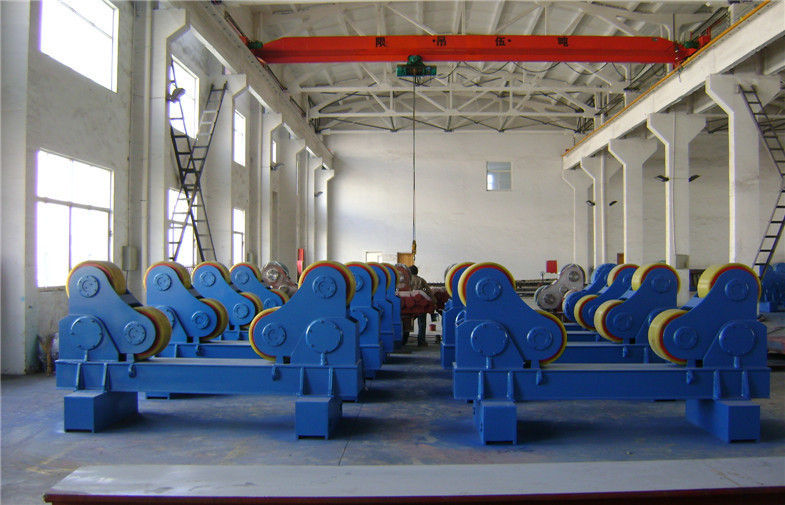

Self - aligned Welding positioner rotator Turning Roll with Double Drive 100Ton

Self - aligned Welding positioner rotator Turning Roll with Double Drive 100Ton
Self - aligned Welding positioner rotator Turning Roll with Double Drive 100Ton

Large Image :  Self - aligned Welding positioner rotator Turning Roll with Double Drive 100Ton

Product Details:
Place of Origin: China
Brand Name: Guoheng
Certification: CE, ISO9000
Model Number: HGZ series
OEM: Acceptable
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container;
Delivery Time: 25days
Payment Terms: TT/LC
Supply Ability: 20sets/month
Price Terms: FOB (Shanghai) or CIF (named port)
Detailed Product Description
High Light:

vessel turning rolls

,

pipe rollers for welding

100Ton Welding Rotator Turning Roll Double Drive Self - aligned





1. Quick Details



  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Roller distance is self-aligned and roller surrounding angle among 45°~110°;



2. Introduction



This series welding rotators are self-alignment/self centering type.

Our welding roller beds designed for maximum workpiece loads from 80T to 100T are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding.

We also provide tailor-made pipe welding rotator according to your special requirements.



3. Main Parameters



Model

HGZ80

HGZ100

Max loading T

80

1000

Suit diameter mm

Min

850

6000

Max

5000

2800

Rubber Roller mm

Dia

500

500

Width

120

120

Metallic roller mm

Dia

494

494

Width

60

80

Linear speed m/h

6--60

Speed Control

VFD

Motor power kW

2*2.2

2*2.2

Roller distance mm

2000

2200

Above are our standard models and parameters, and it can be designed and manufactured on request.


 *We reserve the right to alter specifications without prior notice.



4. Main features



  • The standard models of our roller beds or welding rotators have the following features:
  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
  • Roller distance is self-aligned and roller surrounding angle among 45°~110°;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
  • Lifting lug on the base of roller bed;
  • Standard color:



Optional features:



  • Roller material options: Metallic or PU roller;
  • Undercarriage/travel boogie;
  • Interface for integral control with welding column&boom;
  • Foot switch;
  • Servo drive;
  • Anti-explosion motor&control panel;



5. Supply range



  • Driving welding rotator                                          1set
  • Idle welding rotator                                             1set
  • Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m]                      1set
  • Technical documents (with manual book, conformity certificate, packing list, etc)                                                             1set



6. Structure drawing



Self - aligned Welding positioner rotator Turning Roll with Double Drive 100Ton 0



7. Reference photo



Self - aligned Welding positioner rotator Turning Roll with Double Drive 100Ton 1



8. Comparative advantage



  • ISO9000&CE certified;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation,commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
