Lead Screw Adjusting Welding Rotator 20Tons With Steel And Rubber Roller

Lead Screw Adjusting Welding Rotator 20Tons With Steel And Rubber Roller
Lead Screw Adjusting Welding Rotator 20Tons With Steel And Rubber Roller Lead Screw Adjusting Welding Rotator 20Tons With Steel And Rubber Roller Lead Screw Adjusting Welding Rotator 20Tons With Steel And Rubber Roller

Large Image :  Lead Screw Adjusting Welding Rotator 20Tons With Steel And Rubber Roller

Product Details:
Place of Origin: China
Brand Name: H-WELDING
Certification: Certification of original
Model Number: CHGK-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in conta
Delivery Time: 30 days
Payment Terms: 30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100
Supply Ability: 10 sets
Detailed Product Description
Product Type: Lead Screw Adjustable Speed Control: VFD
Type: Welding Turning Roll Usage: Welding Assistance
Roller Linear Velocity(m/h): 6-60 Power Of Motor(kw): 2×1.1
High Light:

welding turning rolls

,

pipe welding tools



20Tons Lead Screw Adjusting Welding Rotator Used With Steel And Rubber Roller





Quick Detail:



  • The lead screw adjusting rotator is suitable for circular pipe/tank/vessel welding;
  • The distance between wheels can be adjustable by lead screw.
  • There are several specifications for customer choice; we also can special design according to customer’s requirements.





Description:



The distance between two rollers can be adjustable by manual control of lead screw, to accommodate work-piece of variable diameters. The equipment features in good adaptation, smooth revolve, VFD adjustable revolve speed and displaying in linear speed, which is suitable for welding, polishing, assembly for pipe/tank/vessel longitudinal and transverse seam welding.

Our company also can customize welding rotator in all varieties according to client's requirements.





Applications:



It used in many industries such as pressure vessel, boiler, freezing equipment, power station construction, metallurgical, engineering machinery, marine building, and petro-chemical industries etc.





Specifications:



Type

Max loading (kg)

Range of suitable work piece(mm)

Dia. and width of the wheel(mm)

roller linear velocity(m/h)

Power of motor(kw)

Adjustable mode for space

Way of setting

Rubber rollers

Metal rollers

HGK-2

2000

Φ200-1200

Φ200×100

2×Φ190×16

6-60

2×0.18

Manual screw adjustment or bolt shift

AC converter stepless speed adjust



HGK-5

5000

Φ250-2300

Φ250×100

2×Φ240×20

6-60

2×0.37

HGK-10

10000

Φ300-2800

Φ300×120

2×Φ290×25

6-60

2×0.55

HGK-20

20000

Φ500-3500

Φ350×120

2×Φ340×35

6-60

2×1.1

HGK-40

40000

Φ600-4200

Φ400×120

2×Φ390×45

6-60

2×1.5

HGK-60

60000

Φ750-4800

Φ450×120

2×Φ440×60

6-60

2×2.2

Bolt shift

HGK-80

80000

Φ850-5000

Φ500×120

2×Φ490×70

6-60

2×3

HGK-100

100000

Φ1000-5500

Φ500×120

2×Φ490×100

6-60

2×4

HGK-150

150000

Φ1100-6000

/

Φ620×220

6-60

2×4

HGK-250

250000

Φ1100-7500

/

Φ660×260

6-60

2×5.5

HGK-400

400000

Φ1100-7500

/

Φ750×320

6-60

2×7.5

HGK-500

500000

Φ1100-7500

/

Φ750×400

6-60

2×11



Note: For 2-100T roller is steel and rubber combination roller.For 100-500T roller is made of whole steel roller or imported rubber.





Competitive advantage:



1. Main electric elements are Siemens/Schneider.

2. VFD rotary speed control, improving the reliability of operation.

3. Steel and rubber roller or PU roller which can ensure a long time using.

4. With lubrication system.

5. Accept testing before delivery.

6. Accepy special design and custom.

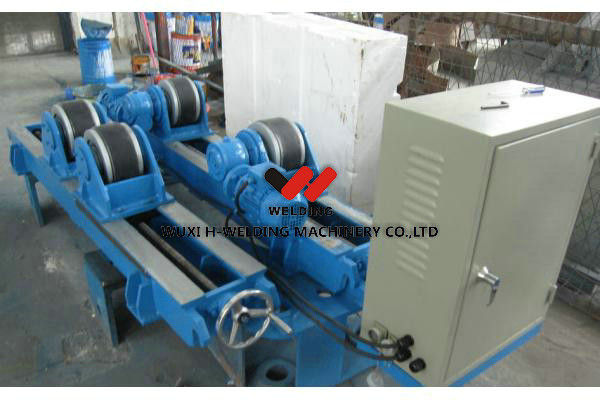

Below are some detailed pictures for your reference:



Lead Screw Adjusting Welding Rotator 20Tons With Steel And Rubber Roller 0
