Welding Turning Rolls

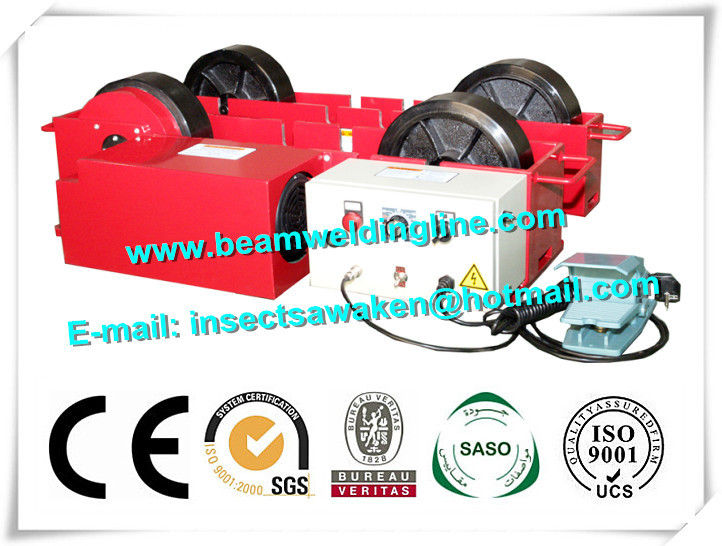

Handheld Pipe Turning Roller Conventional Welding 270 - 990m Vessel

1. Simple introduction

        Tank turning roll is the finest small set of tank and pipe turning rolls on the market, built

with the same quality and features as our larger tank turning rolls and pipe turning rolls.

● Hand held push button pendent control with maintained forward, stop, reverse and infinitely

variable speed adjustment.
● On/off electric foot control with forward and reverse switch at the control box.
● Adjustable roll to roll center distance for optimum contact angle.
● Both drive rolls independently powered eliminating the many problems associated with drive

shaft systems.
● Each worm gear drive system is oil immersed for long life and sealed from contaminants such as

weld spatter and slag.
● Separate drive roll & idler roll allows for short or long work-pieces.
● AC inverter drive with LED frequency display for speed adjustment.
● Machined bed on idler and drive roll for greater accuracy.
● Low voltage 24 volt D.C. operator controls.

2. Technical parameter

● Model: FSM-CWR-3
● Load capacity: 3T (1 power & 1 idler rotator)
● Rotation speed: 0-4000mm/min
● Vessel diameter: 270-990m
● Incoming supply: 220V/ 1Phase/ 50HZ (specify input voltage when ordering)
● AC Inverter: 0.5KW
● Motor rating: 0.5KW DC motors
● Control voltage: 24V low voltage control
● Weight: 92Kg power rotator and 54Kg idler rotator
